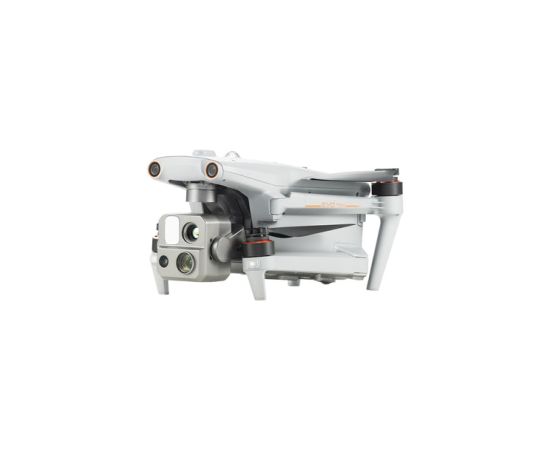

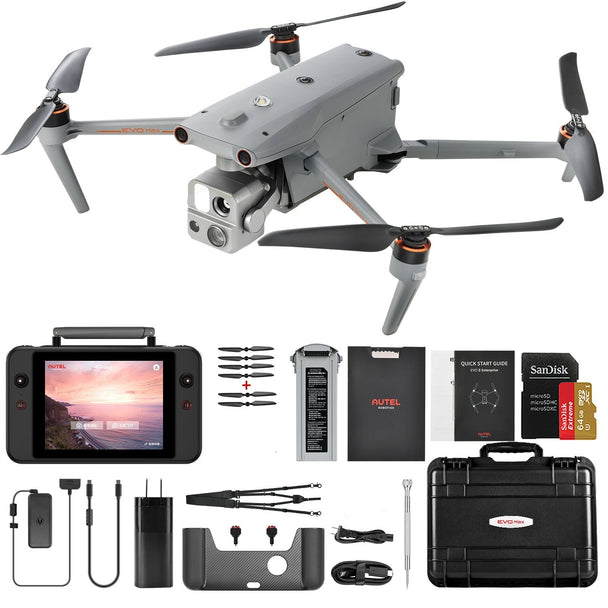

Autel EVO MAX 4T Drons

Autel EVO MAX 4T Specs

• • Aircraft

    Weight	3.5 lbs (1600g, battery and gimbal included)
    Max. Takeoff Weight	4.41 lbs (1999 g)
    Dimensions	576*660*149 mm (folded, incl. propellers) 340*407*148 mm (folded, excl. propellers) 257*136*133 mm (unfolded, excl. propellers)
    Diagonal Wheelbase	1.52 ft (464mm)
    Max Ascent Speed	8m/s
    Max Descent Speed	6m/s
    Max Horizontal Speed (windless near sea level)	23m/s *Maximum speed in Ludicrous Mode is 19m/s when operating in EU regions.
    Max Service Ceiling Above Sea Level	23000ft (7000m)
    Max Flight Time (windless)	42 mins
    Max Hovering Time (windless)	38 mins
    Max Wind Resistance	27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
    IP Rating	IP43
    Max Tilt Angle	35°
    Max Angular Velocity	Pitch: 300°/s; Yaw: 120°/s
    Operating Temperature	-4°F to 122°F (-20℃ - 50℃)
    Operating Frequency	2.4G/5.2G*/5.8G/900MHz*
    GNSS	GPS+Galileo+BeiDou+GLONASS
    Transmitter Power (EIRP)	2.4GHz:<33dBm(FCC), <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC)
    Hovering Accuracy	Vertical: ±0.1 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.15 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.1 m (RTK enabled);

  • Gimbal

    Mechanical Range	Pan: -135° to 45° Tilt: -45° to 45° Roll: -45° to 45°
    Controllable Range	-90° to 30°
    Stable system	3-axis mechanical gimbal (pan, tilt, roll)
    Max Control Speed (pitch)	200º/s
    Angular Vibration Range	<0.005°

  • Zoom Camera (Telephoto)

    Sensor	1/2" CMOS, Effective pixels: 48M
    Lens	Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8
    Exposure Compensation	±3EV 0.3EV/step
    ISO Range	Normal Mode： Auto: ISO100 ~ ISO6400 Manual: Photo: ISO100 ~ ISO12800 Video: ISO100 ~ ISO6400
    Shutter Speed	Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
    Max Photo Size	8000×6000
    Max Video Resolution	7680×4320

  • Wide Camera

    Sensor	1/1.28 CMOS, Effective pixels: 50M
    Lens	DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus
    Exposure Compensation	±3EV 0.3EV/step
    ISO Range	Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400
    Shutter Speed	Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
    Max. Video Resolution	3840×2160
    Photo Size	8192*6144 4096*3072

  • Thermal Camera

    Thermal Imager	Uncooled VOx Microbolometer
    Lens	DFOV: 42° IFOV: 0.92mrad Aperture: 13mm Focus: f/1.2
    Infrared Temperature Measurement Accuracy	26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉
    Video Resolution	640*512
    Photo Size	640*512
    Pixel Pitch	12 um
    Temperature Measurement Method	Center measurement, pot measurement, rectangular measurement
    Temperature Measurement Range	-4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C)
    Temperature Alert	High and low temperature alarm thresholds, reporting coordinates and temperature values

  • Laser Range Finder

    Measurement Accuracy	±3.3ft (1m)
    Measuring Range	3937ft (1200m)

  • Image Transmission

    Operating Frequency	2.4G/5.2G*/5.8G/900MHz* *5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
    Max Transmission Distance (unobstructed, free of interference)	12.4 miles/20km (FCC), 4.9 miles/8km (CE)
    Independent Networking	Autel Smart Controller V3
    Transmitter Power (EIRP)	2.4GHz:<33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC)

  • Autonomy

    Non-GPS Hovering and Manual Flight	Indoor: Horizontal error ≤1.18in (At least have texture at one direction） Outdoor: Daytime: Within 1640ft (500m) flight height, horizontal error < 0.01*height Night: Manual flight is controllable within 328ft (100m) flight height
    Non-GPS Return-to-Home	Within 1640ft (500m) flight height, horizontal error of Return-to-Home point < 11.81in
    Automatic Obstacle Rerouting	High Speed Obstacle Rerouting: Flight speed up to 45mph (20m/s) when Min. safety distance to obstacle is 4.9ft (1.5m) High Precision Obstacle Rerouting: Flight speed could reach 6.7mph (3m/s) when Min. safety distance to obstacle is 1.64ft (0.5m)
    Multi-target Recognition and Tracking	Target identification types: people, vehicles, boats Number of targets detected: 64 Comprehensive recognition accuracy: > 85%

  • Millimeter-wave Radar Sensing System

    Frequency	60Ghz~64Ghz* *Please fly safely and consult your local laws and regulations.
    Size	1.5*0.55*0.08 in (38*14*2mm) (L*W*H)
    Weight	0.07oz (2g)
    EIRP	18dBm
    Sensing Range	Upward: 5.9~787.4in (0.15~20m) Downward: 3.9~4724.4in(0.1~120m) Forward and Backward (Standard/Comfortable): 0.82~98.43ft (0.25~30m)  Forward and Backward（Ludicrous）: 1.64~196.85ft (0.5~60m)
    FOV	Horizontal（6dB）：±60°，Vertical（6dB）：±30°
    Speed Measurement Range	± 134mph (60m/s)
    Speed Measurement Accuracy	≤1%
    Max. Target Detection Number	32

  • Visual Sensing System

    Obstacle Sensing Range	Forward/Upward/Downward/Backward/Sideward: 0.2~50m
    FOV	Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V)

  • Autel Smart Controller V3

    Screen	7.9 inch, 2000nits max. brightness, 2048*1536 resolution
    External Battery	Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-on Energy: 67Wh Charing time: 120mins Intelligent Lithium Ion Battery
    Operating Time	3 hours (Max. brightness) 4.5 hours (50% brightness)
    Max Transmission Distance (with interference)	12.4 miles/20km (FCC), 4.9 miles/8km (CE)
    IP Rating	IP43
    Storage	128G
    GNSS	GPS+GLONASS+Galileo+Beidou+NavIC+QZSS
    Operating Temperature	-4°F to 104°F (-20℃ to 40℃)
    Wi-Fi Protocol	WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi
    Operating Frequency	2.400 - 2.4835 GHz； 5.150 - 5.250GHz； 5.725 ‒ 5.850 GHz
    Transmitter Power (EIRP)	2.400 - 2.4835 GHz FCC/CE:≤20dBm 5.150 - 5.250GHz FCC:≤17dBm 5.725 ‒ 5.850 GHz FCC:≤17dBm CE:≤14dBm



  • Aircraft Battery

    Capacity	8070mAh
    Voltage	14.88V
    Battery Type	LiPo 4S
    Energy	120wh
    Net Weight	1.15 lbs (520g)
    Charging Temperature	41° F to 113° F (5ºC to 45ºC) When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery.
    Hot Swap	Support
