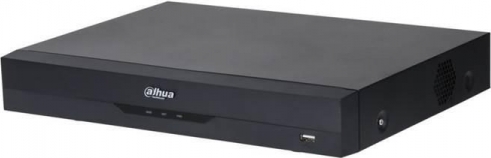

DVR 16CH HDCVI PENTABRID AI/XVR5116HS-I3 DAHUA
| Pentabrid capability: Each channel supports up to 6MP: IP, HDCVI, AHD, TVI and CVBS access can be configured 16-channel BNC interface Recording: HDCVI/AHD/HD-TVI recording:, 5MP, 4MP, 3MP, 2MP All channel 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30 fps) IP: 16+8 channels, each channel up to 6MP, Max 128 Mbps incoming bandwidth AI Coding/H.265+/H.265/H.264+/H.264 video compression G.711A, G.711U, PCM audio compression, 1x SATA interface up to 16 TB storage VGA/HDMI up to 4K output RJ-45, 2x USB ports, RS485 No front panel control, 1/1 Audio I/O, no Alarm I/O, Audio over Coax for 8 channels Mini 1U case, mouse included ONVIF 16.12, CGI Conformant, Smart Search Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more AI: Up to 2 channels video stream (analog channel) Perimeter Protection Up to 16 channels video stream (analog channel) SMD Plus Up to 2 channels video stream (analog channel) human face recognition IoT & POS functionalities Free IP monitoring software available Manufacturer Website: https://www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Recorders/Lite-AI-Series/I3-Series/4K-N/5MP-Series/XVR5108HS-4KL-I3 |
||||||||||||||||||||||||||
|
Ražotājs:
DAHUA
