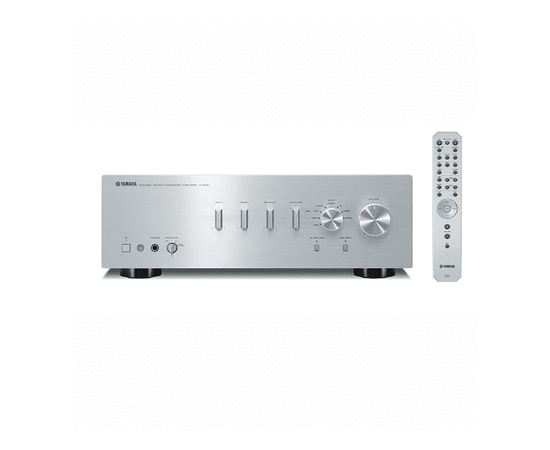

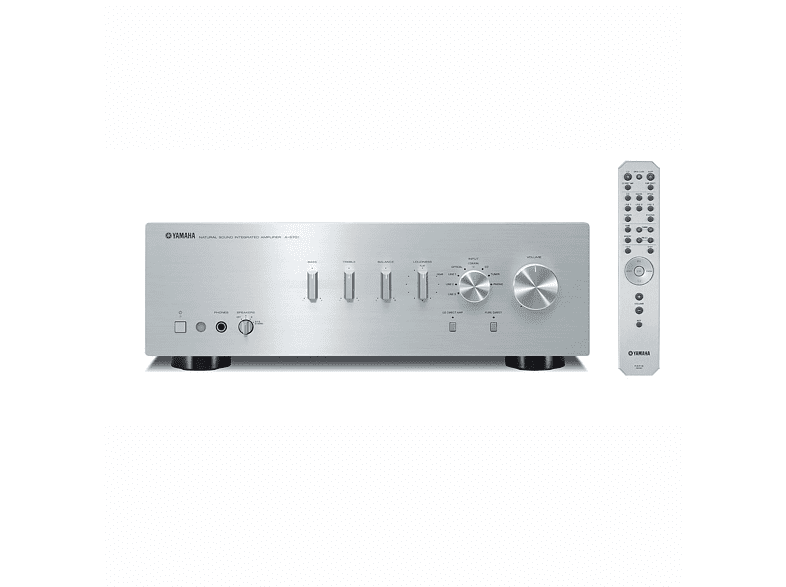

Yamaha A-S701 amplifier (silver)

ToP-ART (Total Purity audio Reproduction Technology) concept ToP-ART Design and ART Base Ensure Optimum Sound When processing and transmission of the audio signal is simple and direct there is less chance of it being affected by noise and distortion. Yamaha’s amplifier design technology called ToP-ART features an I/O (input to output) Direct Symmetrical Design, with left and right channels organised in a straight, symmetrical layout for highest signal purity. In addition, the ART (Anti-Resonance and Tough) Base bottom chassis and a solid centre bar provide high-rigidity support and vibration damping. These Yamaha design innovations contribute to this amplifiers’ rich audio reproduction with abundant musicality. High Quality Parts for Outstanding audio Performance Custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, one-point grounding system, aluminium-extruded heat sinks and other top-quality parts effortlessly handle demanding audio signal conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of any component. Yamaha uses only very high quality parts, carefully selected and tested. Created by Yamaha′s Rich Experience and Tradition, and High Technological Expertise Yamaha, with a long history of over 125 years as a musical instrument maker, also has a high reputation for HiFi components. The A-S701 is created by taking advantage of this rich experience and high technological expertise. Based on the concept of “Natural Sound”, for reproducing all music as it really sounds, and built with scrupulous care from circuit design to basic sound production, even though an entry model it reproduces high sound quality and musically rich sound. CD Direct Amplification and Pure Direct Mode for Greater Sound Purity With a straight connection to the CD input, CD Direct Amplification maximises CD source S/N ratio. Additionally, engaging the Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality. Continuously Variable Loudness Control The A-S701 also feature a new analogue loudness control on the front panel that uses electronic volume for higher sound quality, which lets you adjust the loudness effect as desired. Separate from the overall volume, this controls the balance of the low- and high- frequency sounds, providing full tonal range at any volume level, compensating for the natural loss in the human ear of high and low frequencies at soft levels. Gold-plated Terminals Gold-plated terminals ensure a high quality connection that prevents signal loss. The A-S701 have gold-plated speaker terminals and input terminals digital audio Input for TV and/or Blu-ray Player The A-S701 is equipped for digital audio input with both optical and coaxial terminals. The optical is for receiving audio from a TV, and the coaxial for receiving audio from a Blu-ray player. The audio stays in the digital domain, giving you pure, pristine dynamic sound for all your entertainment sources, from sports and other programmes to movies and concerts. Connection for YBA-11 Bluetooth wireless Adapter With the YBA-11, you’ll be able to stream music wirelessly from a Bluetooth capable mobile phone or a PC to the Network receiver. Thanks to the digital connection and aptX® audio coding algorithm, you’ll enjoy wireless music streaming with optimum sound quality. You can also conveniently power the YBA-11 via the DC-out connection on the rear panel of the amplifier. speaker A, B or A+B Selection and speaker Terminals for Two Systems You can connect two separate speaker systems in different rooms and switch between them, or have them both playing at the same time. There are four terminals, so by just pushing a button, you can switch speakers to match the sound source. subwoofer Terminal A terminal for connecting a subwoofer is provided, allowing you to increase the bass output of your system for a more powerful sound with better overall sound quality. phono MM Terminal You can connect a turntable with an MM phono cartridge to play vinyl records. This lets you enjoy not only CDs, but also analogue record sound from an amp with the latest digital/analogue technology. Simple yet Sophisticated Design With a beautifully simple and unique design inherited directly from Yamaha’s HiFi audio components, this amplifier also boast an easy-to-operate button layout. The aluminium front panel has a richly textured silver hairline finish. The control knobs are also of the same luxurious construction as used on our top-end models. Remote Control with Clean, Simple Design The clean, simple design of the remote control provides easy-to-understand one-hand operation. The easy-to-use design makes it simple to adjust song volume and order. The unit has a sophisticated looking hairline finish that matches the design of the amplifiers. You can also use the remote to control a Yamaha CD player. Rotary Encoder Input Selector with LEDs The rotary encoder makes it quick and easy to select input sources. The luxury hairline finish material offers a nice tactile feeling. LEDs clearly show which source is selected, so you can easily switch sources even in a dark room. Auto Power Standby Function The amplifier has a power management function that detects when it hasn′t been used for a long time (about 8 hours) even though the power is on, and automatically shifts it into standby mode. So even if you forget to turn it off, power consumption will be minimised.

Maximum capacity (4 ohm, 1 kHz, 0.7% THD, for Europe)
160 W + 160 W
High dynamic power / channel (8/6/4/2 ohm) 140/170/220/290 W
Damping factor 240
Frequency range 10 Hz-100 kHz +/- 1.0 dB
Dimensions (b x h x d) 435 x 151 x 387 mm
Weight 11.2 kg

Integrated amplifier with extremely pure noise and a lot of power. The digital inputs are an extra benefit.

- Top art (Total Purity audio Reproduction Technology) and High Quality Parts
- I / O (Input to Output) Direct Symmetrical Design
Art (Anti-Resolution and Tough) Base
- Custom-Made Power Transformer / 12,000UF Block -------- Capacitors / Aluminum-Extruded Heat Sinks
- 160W x 2 (max), 100w x 2 (RMS) High Power Output
- CD Direct Amplification and Pure Direct
- Continuous Variable Loudness Control
- Gold-plated speaker Terminals and RCA terminals
- Digital audio Inputs for TV or Blu-ray Player
- Connection for YBA-11 Bluetooth Wireless Adapter
- Simple Yet Sophisticated Design (Aluminum Front Panel and Knobs)
- Auto Power Standby
