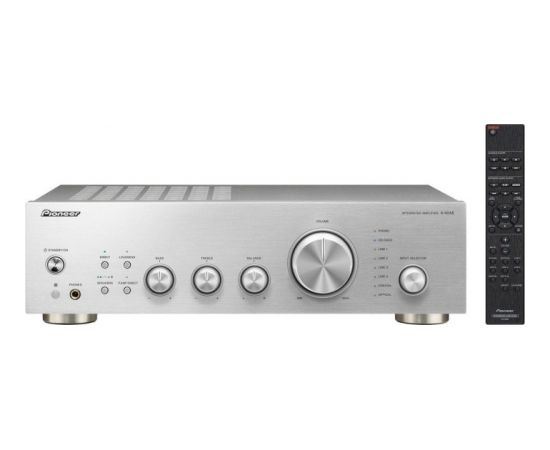

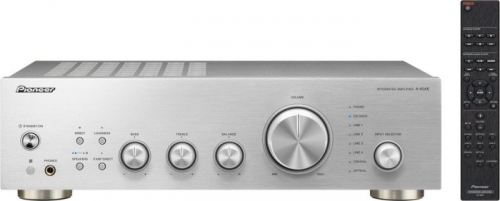

Pioneer A-40AE silver skaņas pastiprinātājs
Specifications of the Pioneer A-40AE Integrated Amplifier
- 60 W + 60 W (20 Hz-20 kHz, THD 0.5 %, 4 ohms, 2ch Driven)
- 30 W + 30 W (20 Hz-20 kHz, THD 0.4 %, 8 ohms, 2ch Driven)
- Guaranteed Speaker Impedance (2 Speaker Terminals): 4-16 ohms (A or B, Bi-Wiring), 8-32 ohms (A+B)
- Frequency Response: 10 Hz-100 kHz +1 dB/-3 dB
- Signal-to-Noise Ratio (IHF-A) 106 dB (LINE In, SP Out), 81 dB (PHONO In, SP Out)
- Direct Energy Design/Direct Energy Construction
- Clean Ground Construction
- Isolated Power Supply Circuits
- Wolfson 192 kHz/24-bit D/A Converter
- Custom-Made ELNA Capacitors
- Hi-Res Audio Compatible
- Direct Function
- Power Amp Direct Mode
- Speaker A + B
- Tone Control (Bass/Treble)
- Balance Control
- Loudness
- Aluminium Volume Knob
- Aluminium Front Panel
- 1.6 mm-Thick Rigid Steel Chassis
- Anti-Standing Wave Insulators
- Auto Standby
- Power Requirements: AC 220-230 V, 50/60 Hz
- Power Consumption: 150 W
- Power Consumption During Standby: 0.2 W
- Analogue Audio Inputs (Gold Plated): PHONO (MM), CD/SACD, LINE 1, LINE 2, LINE 3, LINE 4, P.AMP DIRECT
- Digital Audio Inputs: Optical, Coaxial (Gold Plated)
- Analogue Audio Output: LINE OUT (Gold Plated)
- Phones Output
- SR In/Out
- AC Inlet (Large Type)
- Dimensions (W x H x D): 435 x 129 x 323 mm
- Weight: 8.2 kg
Ražotājs:
Pioneer
