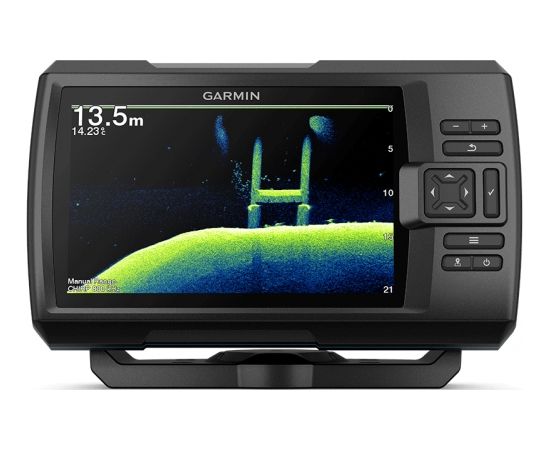

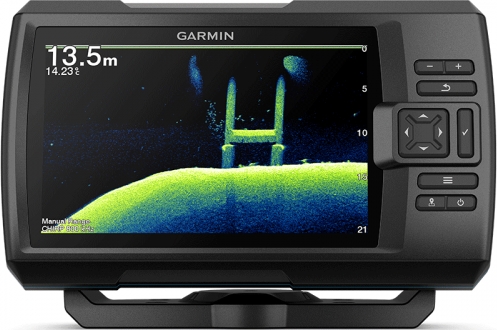

Garmin Striker Vivid 7cv, WW w/ GT20

THE CHOICE IS YOURS
See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 7cv fishfinder with transducer.

The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.
What a view. Use the included transducer to get CHIRP traditional and ClearVü sonars.
Never lose a hot spot again. Use waypoint marking to find your way back.
What’s under the water’s surface looks pretty good as 1” contours, just saying.
Wi-Fi® connection1 on land opens up a world of possibilities on the water.

CLEAR, COLORFUL SONAR
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 7” fishfinder.

BUILT-IN SONAR
Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.

WAYPOINT MARKING
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

QUICKDRAW CONTOURS
Nobody knows the waters you fish better than you. With the STRIKER Vivid 7cv fishfinder, you can store up to 2 million acres of maps with 1’ contours.

WI-FI CONNECTIVITY
Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.

INCLUDED HARDWARE
The STRIKER Vivid 7cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

TECHNICAL SPECIFICATIONS:

Physical dimensions: 23.5 x 14.0 x 5.8 cm
Display resolution: 800 x 480 pixels wvga color
Weight: 0.8 kg
Water rating: ipx7
Transmit power: 500 w (rms)

Sonar features & specifications
Dual-frequency (50/200 khz) sonar capable
Dual-beam (77/200 khz) sonar capable
Frequencies supported
Traditional: 50/77/200 khz
Chirp (mid and high)
Clearvü 260/455/800 khz
Bottom lock (shows return from the bottom up)
Water temperature log and graph

Fishfinder features:
Split-screen zoom
Ultrascroll® (displays fish targets at higher boat speeds)
Fish symbol id (helps identify fish targets)
Autogain technology (minimises clutter, maximises targets)
Adjustable depth line (measures depth of underwater objects)
A-scope (real time display of fish passing through transducer beam)
Water temperature sensor included

Additional:
One 4-pin transducer port
Wireless connectivity: yes
Quickdraw contours
Integrated gps
Mark waypoints
Course over ground (cog)
Current draw @ 12v: 0.55a

In the Box:
STRIKER Vivid 7cv fishfinder
GT20-TM transducer
Power/data cable
Tilt/swivel mount
Hardware
Garmin bumper sticker
Documentation
