Naber P-E-Jal Col 150 izvads sienā ar THERMOBOX

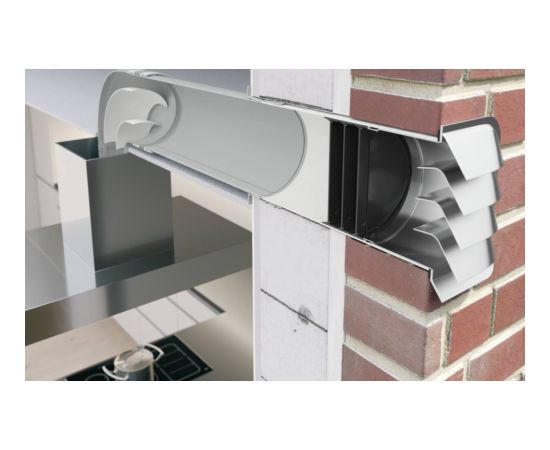

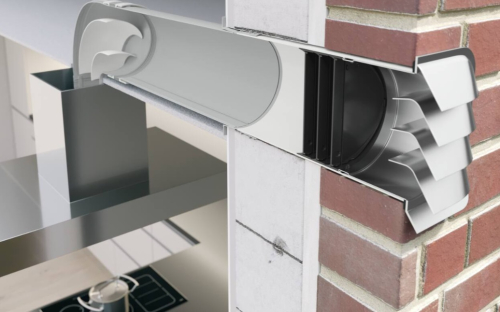

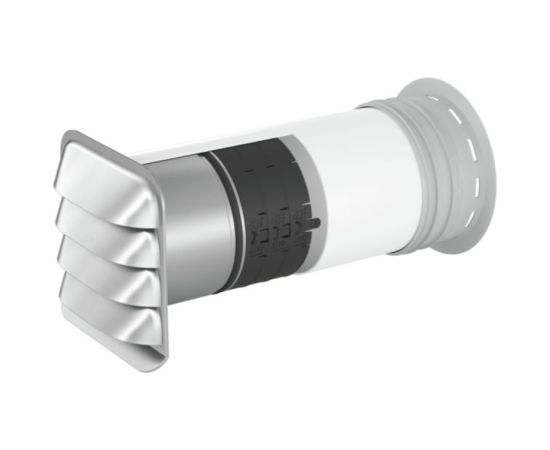

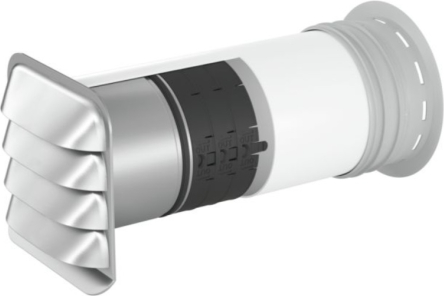

Suitable for optimised kitchen ventilation without heat loss: The COMPAIR® PRIME flow P-E-Jal Col 150 wall box including THERMOBOX. It is matched to all air ducts and components of the COMPAIR® PRIME flow family. The basic equipment includes the proven Thermobox as a heat retention system. It works mechanically and thus saves energy. The external finish is provided by the P-E-Jal Col louvre made of stainless steel for installation near the floor or at ceiling height. A secure connection with the universal connector on the inside is created by the easy-to-handle N-click system of the optionally available . There are direct connection options to flat adapters, round pipes and round pipe bends. The installation in the wall duct is carried out independently of time in two phases with the help of the shell construction set that is part of the complete package. The associated pipe is designed for a wall thickness of up to 550 mm and can easily be shortened to 220 mm. A nominal diameter of 162 mm is required for the core hole. The polystyrene plugs included in the pipe kit protect against unwanted contamination during the construction phase and also serve as an alignment aid. Tool-free assembly and sealing is made possible by the wall sleeve with three lip seals. |
