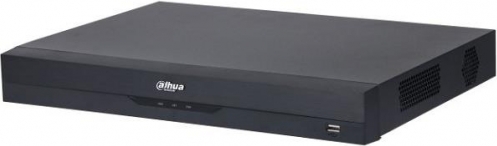

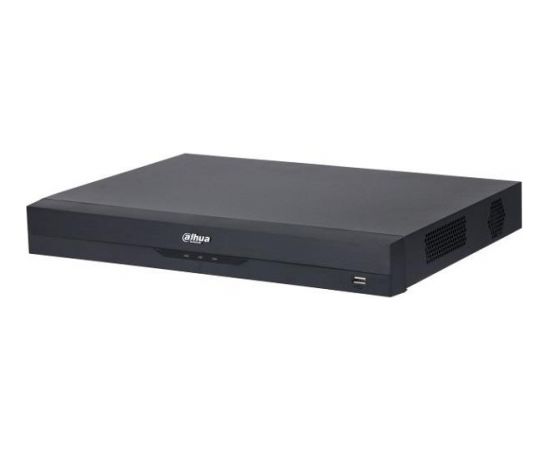

DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3 DAHUA
| Pentabrid capability: Each channel supports up to 5MP: HDCVI, AHD, TVI, CVBS and 6MP IP Video input, Auto-detect
16-channel BNC interface
HDCVI/AHD/HD-TVI recording: 5MP, 4MP, 1080P@25/30 fps, 720P@50/60 fps, 720P@25/30 fps.
Record: 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30 fps)
IP: 16+8 channels, each channel up to 6MP; Max 128Mbps Incoming Bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression,
2x SATA interfaces up to 32 TB total storage
VGA/HDMI up to 3840×2160 output
RJ-45 1GB, 2x USB ports, RS485
No front panel control, 1/1 Audio I/O, no Alarm I/O
Full size 1U case, mouse included
ONVIF 16.12, CGI Conformant, Coax audio, IoT & POS support
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Up to 2 channels video stream ( analog channel ) Perimeter Protection
Up to 16 channels video stream ( analog channel ) SMD Plus
Up to 2 channels video stream (analog channel ) human face recognition
IoT & POS functionalities
Free IP monitoring software available Manufacturer Website: https://www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Recorders/Lite-AI-Series/I3-Series/5M-N/1080P-Series/XVR5216AN-I3 | ||||||||||||||||||||||
|
Mарка:
DAHUA
