• 120 watts continuous power / 240 watts peak power
• 300 mm woofer with coated paper con
• Control of volume, crossover frequency and phase
• Klippel-optimized magnet system

Active subwoofer with a 300 mm cone and up to 160 watts of power

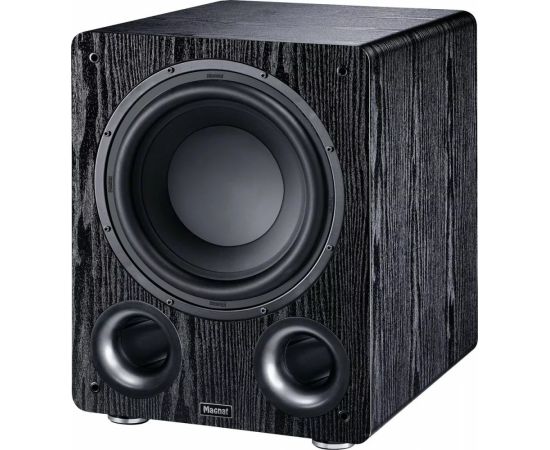

The Magnat Alpha RS 12 features a 300 mm (12 inch) high-power long-throw woofer in a bass reflex housing that is equipped with two Airflex ports. The integrated Class D amplifier delivers 120 watts of continuous power, while the peak power is an impressive 240 watts. The technology incorporated in the RS12 allows it to reproduce frequencies down to 20 Hz. The amplifier electronics allow the volume, crossover frequency and phase to be regulated, thereby enabling optimal adaptation to the acoustics of the room.

The solid MDF housing is optionally available in a black ash or mocha finish. The RS12 measures 360 mm wide and stands 465 mm tall. The standard fabric grille can be easily removed to reveal the impressive bass chassis.

Magnat´s Alpha RS12 active subwoofer is an ideal addition to any home cinema or hi-fi system. Thanks to its variable parameters, the RS12 can be connected to speakers from any manufacturer and always achieve optimal audio results.

WOOFER

• 300 mm high-power long-throw woofer with Klippel®-optimized magnet system
• The coated paper cone ensures a profound audio reproduction
• Ventilated high-performance voice coil to guarantee highest operational reliability

HIGHLIGHTS

• Detachable front cover with acoustic cloth
• High-performance active subwoofer with 30 cm long-throw woofer with extra-large diaphragm mount and high-power Class-D amplifier unit
• Wide range of connection and setting options for perfect combination with home cinema speakers
• Large resonance absorbing feet
• Powerful front-firing design with double reflex tube configuration
• Active frequency response linearization

CABINET

• Two generously dimensioned Airflex ports with low flow resistance
• Large feet with resonance-absorbing rubber inserts
• Bass speaker and reflex tubes in a ´front-firing´ configuration

AMPLIFIERS

• Stereo high level inputs (screw terminals)
• Mains voltage 110V – 240V 50/60Hz
• High performance class-D amplifier
• Adjustable volume and crossover frequency
• Automatic standby function with low power consumption
• Phase switchable from 0° to 180°
• Active frequency response equalization up to 150 Hz (LPC circuit) for seamless integration in AV environments
