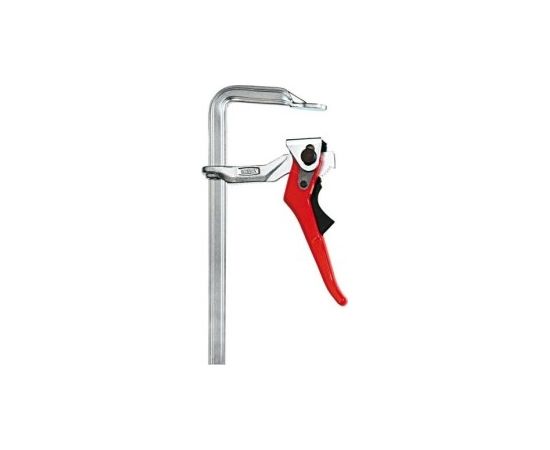

BESSEY lever clamp GH 160/80 - GH16
| Lever clamp GH16 The BESSEY GH lever clamps achieve a clamping force of up to 8,500 N, and the locking mechanism enables controlled, fast and vibration-free clamping. The particularly wear-resistant eccentric ensures a long service life. The serrated sliding arm is made of forged heat-treated steel and ensures the highest level of safety thanks to the linear power transmission. The optimized profile shape enables an even build-up of clamping force with greater power reserves, especially when the span is fully utilized. The fixed bracket, forged from one piece with a molded pressure plate, is tempered and galvanized, making it highly resilient and torsion-resistant. The lever clamp GH16 can be clamped up to 5x faster than conventional clamps and is safe and insensitive to vibrations. With the help of the plastic-coated release lever with integrated anti-slip protection, the connection can be released again quickly. Type: Lever Clamp Color: silver/red EAN code: 4008158034331 Manufacturer No.: GH16 Series: GH Intended use: For springy and elastic clamping Content: 1 piece Material: steel Finish: Galvanized Max. clamping range: 160 mm Clamping force: 8,500 Newtons Projection: 80 mm Area of application: house, workshop Feature: Up to 5x faster than conventional clamps Additional information: Release lever with anti-slip protection, rail thickness 17.5mm x 6.8mm Weight: 640 grams |
Mарка:
Bessey
