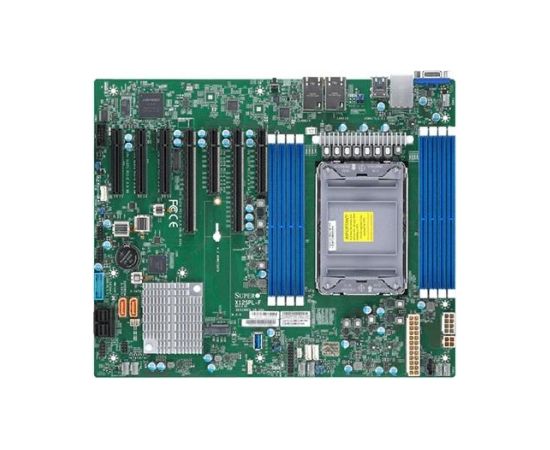

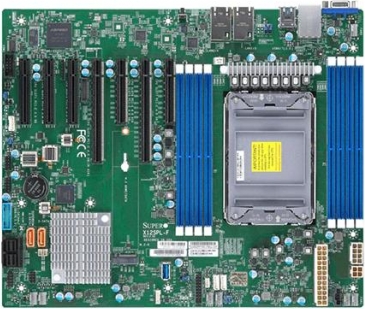

SERVER MB C621A ATX/MBD-X12SPL-F-B SUPERMICRO
| Heatsink for 2U, 3U chassis (optional): SNK-P0078AP4
Heatsink for 4U/Tower chassis (optional): SNK-P0080AP4
Key Features
3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Intel® C621A
Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel® Optane™ Persistent Memory, in 8 DIMM slots
2 PCI-E 4.0 x8,
1 PCI-E 4.0 x16,
1 PCI-E 4.0 x8 (in x16 slot)
3 PCI-E 3.0 x8
M.2 Interface: 1 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with Intel® i210 Gigabit Ethernet Controller Manufacturer Website: https://www.supermicro.com/en/products/motherboard/x12spl-f | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mарка:
SUPERMICRO
