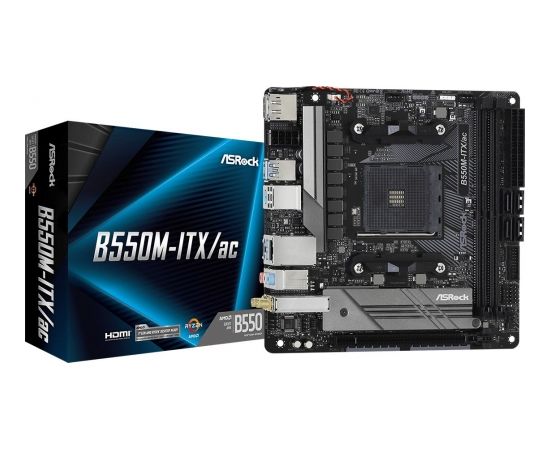

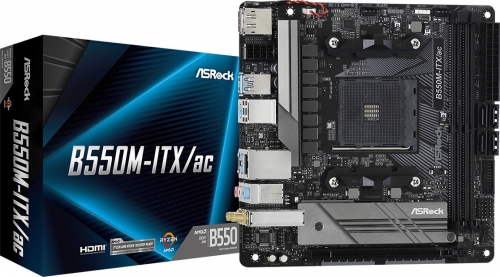

ASRock B550M-ITX/ac
shape factormini-ITX
chipsetAMD B550
VRM8 real phases (6+2), PWM-Controller: RAA 229004 (max. 8 phases)
MOSFETs CPU6x 50A SiC654
MOSFETs SoC2x 50A SiC654
RAM2x DDR4 DIMM, dual PC4-37866U/DDR4-4733 (OC), max. 64GB (UDIMM)
Extension slots1x PCIe 4.0 x16, 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280), 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module)
external connectors1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.0 (5Gb/s), 3x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/2 Combo
Internal connectors1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 4x SATA 6Gb/s (B550)
Header Cooling1x CPU fan 4-Pin, 2x fan/pump 4-Pin
Header Lighting1x 4-Pin RGB (+12V/G/R/B, max. 3A), 1x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
buttons/Switchesnot available
Audio7.1 (Realtek ALC887)
GraphicsiGPU
WirelessWLAN 802.11a/b/g/n/ac (Intel), Bluetooth 4.2
RAID level0/1/10 (B550)
Multi-GPUnot available
Power connections1x 24-Pin ATX, 1x 8-Pin EPS12V
Lightingnot available
BIOS1x 32MB (256Mb)
Special featuresaudio+solid capacitors, 1x M.2-passive cooler, ECC-support |
