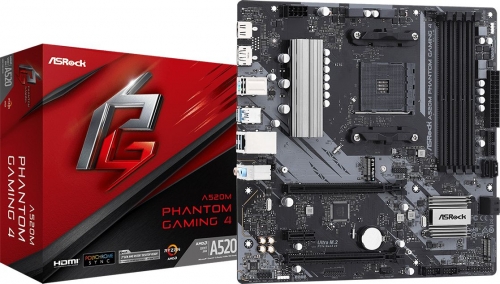

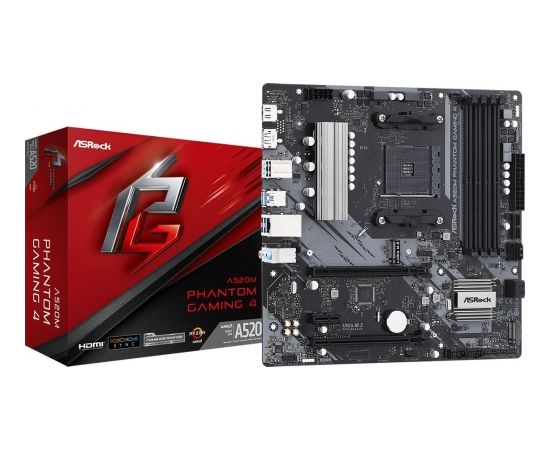

ASRock A520M PHANTOM GAMING 4
shape factorµATX
chipsetAMD A520
VRM5 real phases (3+2), 8 virtual phases (6+2), PWM-Controller: uP9505S (max. 6 phases)
MOSFETs CPU6x 55A SM4337/SM4336
MOSFETs SoC4x 55A SM4337/SM4336
RAM4x DDR4 DIMM, dual PC4-37866U/DDR4-4733 (OC), max. 128GB (UDIMM)
Extension slots2x PCIe 3.0 x16 (1x x16, 1x x2), 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4, 2280), 1x M.2/M-Key (PCIe 3.0 x2/SATA, 2280)
external connectors1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 4x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/2 Combo
Internal connectors2x USB 3.0 Header (5Gb/s, 4x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (A520), 1x TPM-Header, 1x Speaker-Header
Header Cooling1x CPU fan 4-Pin, 3x fan/pump 4-Pin
Header Lighting2x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
buttons/Switchesnot available
Audio7.1 (Realtek ALC887/ALC897)
GraphicsiGPU
Wirelessnot available
RAID level0/1/10 (A520)
Multi-GPUnot available
Power connections1x 24-Pin ATX, 1x 8-Pin EPS12V
Lightingnot available
BIOS1x 32MB (256Mb)
Special featuresaudio+solid capacitors, ECC-support |
