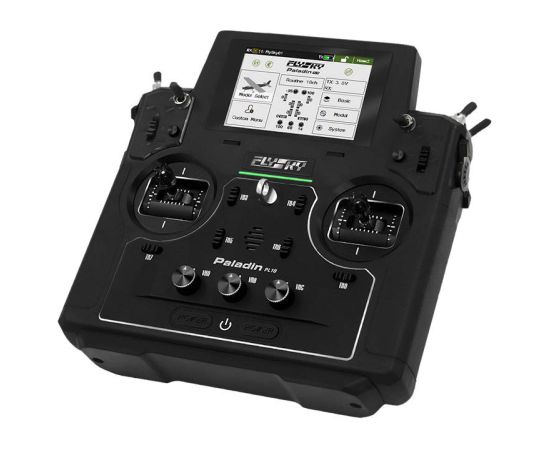

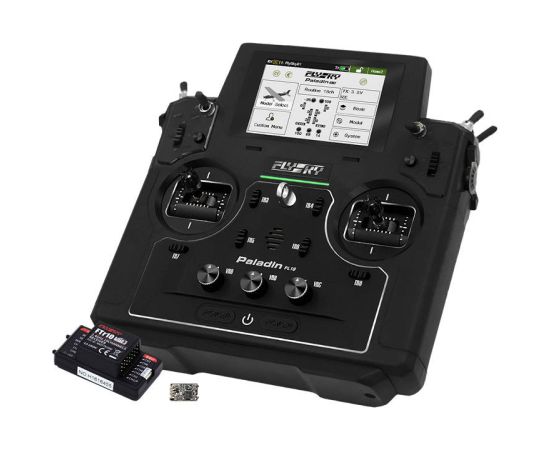

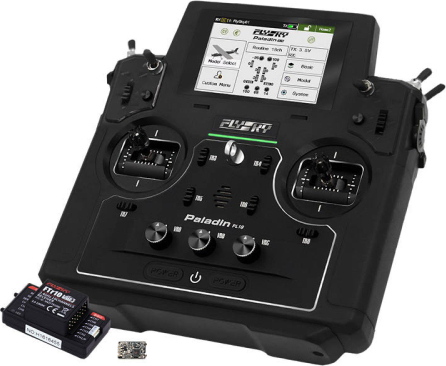

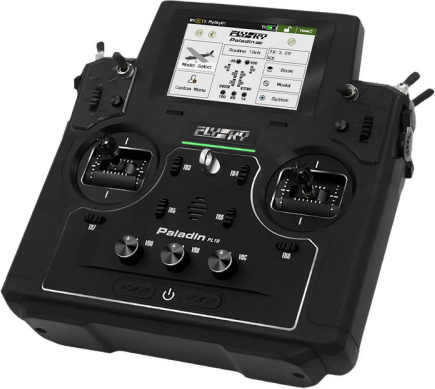

FlySky Paladin PL18 transmitter + FTR10/FTR16S receiver set.

Ensure your comfort while controlling drones, fixed-wing aircraft, gliders and rotorcraft and bet on a FlySky kit! The PL18 transmitter operates at 2.4G frequency and offers up to 18 channels. An easy-to-read display provides the most important information about the device's operation. The transmitter is distinguished by its wide compatibility and 3G FRM301 RF module. It provides a resolution of up to 4096, and the linear error does not exceed 0.15%. It supports various RF communication protocols and guarantees reliable stability. Also noteworthy are its long range (up to 3 km) and specially designed handle. The kit also includes two receivers - FTR10 and FTR16S, which operate in the 2.4GHz band.

Upgraded RF technology

A 3G FRM301 module is built into the PL18 transmitter, which makes it stand out for its great compatibility with a variety of RF protocols. What's more, the device supports the AFHDS 3 3G RF FRM303 module with a transmitting power of up to 2 watts no matter where it is used - even in the mountains or by the sea. And that's still not all! It also supports the CRSF2 protocol and is compatible with the CRSF RF module. As a result, you will gain feedback on flight control parameters.

Ibus2 GPS display

Enjoy convenient access to vital information about the operation of your equipment. The PL18 is equipped with an Ibus2 GPS display (HVGA 3.5" TFT, 320 x 480), which shows the location of supported equipment using graphical parameters so that you can monitor the exact operating status of your drone, glider or other device in real time and use the data for precise control.

Wide compatibility

The FlySky transmitter is highly compatible and can be connected to FlySky AFHDS 2A and AFHDS 3G, among others. In addition, the PL18 automatically searches for related receivers and connects to them, saving you time. This way, when controlling, you can fully focus on the flight. What's more, the transmitter offers wireless dual receiver channel extension, free wiring and dual security. Together with the power module, it can act as a redundant receiver, and in high-speed serial port mode the latency is less than 5 ms.

Efficient power supply

The transmitter is equipped with a 4,300 mAh battery that allows up to 8 hours of operation on a single charge. You can renew the device's energy in two ways. When you charge it wired, using the micro USB interface - it will be ready to continue working in about 6 hours. On the other hand, the time it takes to charge wirelessly is about 7 hours

FTR10 and FTR16S receivers

The FTR10 and FTR16S are dual antenna receivers that operate at a frequency of 2.4 GHz. They stand out with a range of up to 3,500 meters in the air. They are designed for FS-PL18, FRM301 and FRM302 transmitters.

Included:

  • PL18 transmitter x1
  • FTR10 receiver x1
  • FTR16S receiver x1
  • Micro USB cable x1
  • Switch set x2
  • Sunshield x1
  • User manual x1
Manufacturer FlySky
Transmitter model PL18
Channels 18
Compatibility Fixed-wing aircraft, helicopters, cross-country machines, engineering vehicles
Wireless frequency (RF) 2.4G
RF power 20 dBm (max.)
2.4GHz protocol AFHDS3
Distance up to 3 km
Channel resolution 4096
Battery 1S (3.7V) / 4300mAh (built-in)
Charging interface Micro USB / wireless charging
Charging time wired charging: 6h (5V) / wireless charging: 7h (2A)
Working time up to 8h
Low voltage warning < 3.7V
Antenna type Dual
Display HVGA 3.5" TFT, 320 x 480
Language Chinese and English
Simulator USB
Data interface USB, custom interface (USART), PHJACK (PPM)
Operating temperature -10°C to 60°C
Humidity range 20% to 95%
Online update Yes
Transmitter color Black
Dimensions (length x width x height) 214 x 86.5 x 192 mm
Weight of the body 946 g
Certifications CE, FCC ID: N4ZFT1800, RCM
Receiver model FTR10
Compatibility FS-PL18, FRM301, FRM302
Number of PWM channels 10
Wireless frequency 2.4GHz
Wireless protocol AFHDS 3
Range up to 3500 m (air)
Antenna type Dual (103 mm x2)
Power 3.5-12V
RSSI Supported
Output signal PWM / PPM / i.bus / s.bus / UART
Operating temperature From -10℃ to 60℃
Humidity range 20% to 95%
Online update Yes
Dimensions 52 x 28 x 22 mm
Weight 22 g
Certifications CE, RCM, FCC ID: N4ZFTR1000
Receiver model FTR16S
Compatibility FS-PL18, FRM301, FRM302
PWM channels None
Wireless network frequency 2.4GHz
Wireless protocol AFHDS 3
Range up to 3500 m (air)
Antenna type Dual (92.5 mm x2)
Power 3.5-8.4V
RSSI Supported
Output signal i.bus / s.bus / PPM
Operating temperature From -10℃ to 60℃
Humidity range 20% to 95%
Online update Yes
Dimensions 20 x 12 x 3.1 mm
Weight 2 g
Certifications CE, RCM, FCC ID: N4ZFTR16S00
