Ground Zero BASSKIT AI 10SQ

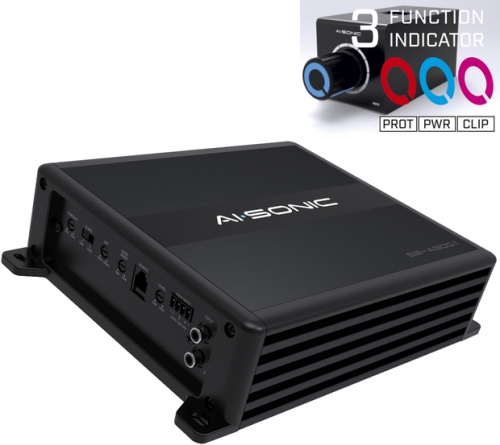

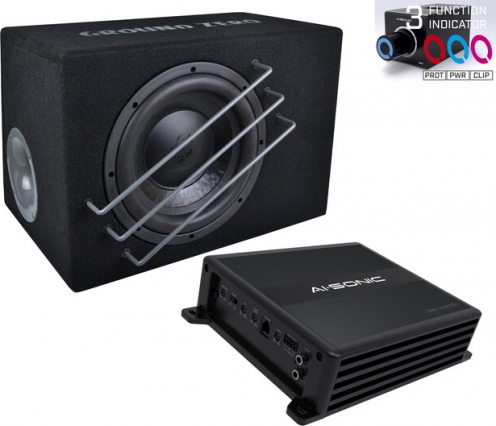

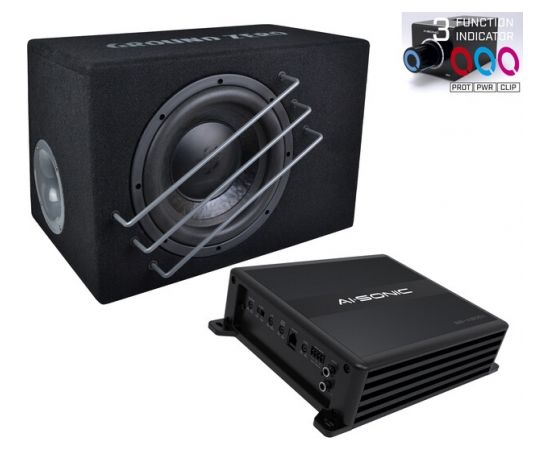

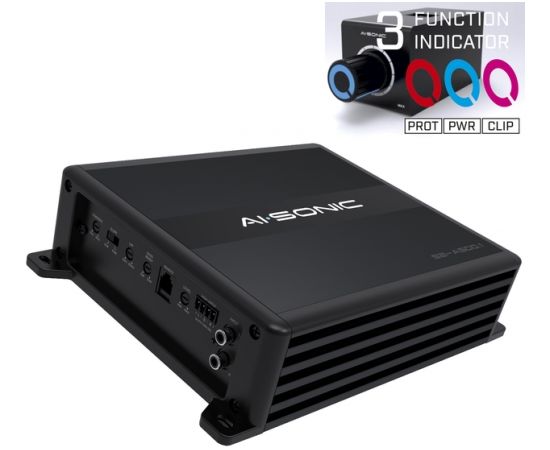

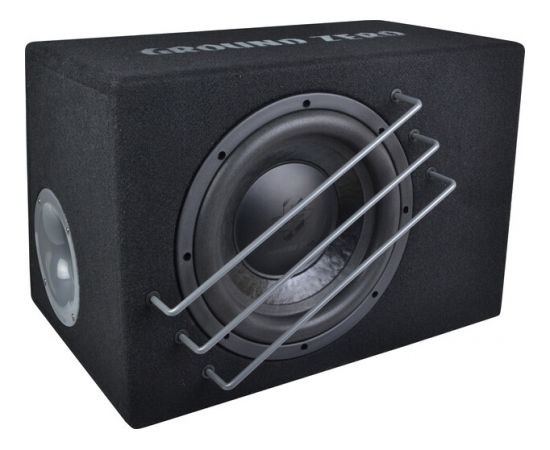

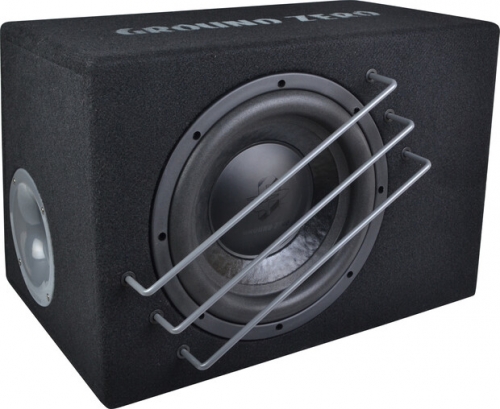

| This kit includes Passive vented enclosure including 10″ GZUW 10SQ-D2 subwoofer. AI-Sonic S2-A500.1 is mono D class amplifier for users, who want to feel pure sound quality. Amplifier gives more power as there are mentioned at the specs. Finished dark cover, which profile is brushed black aluminium. When amplifier is on. There is indicator light in AI-Sonic logo! Includes a remote control, which has three different indicator-leds. (protection, power and clipping) (Works only when LPF is turned on.) RMS POWER (1ohm) 12v THD 0.5% 500W RMS POWER (2ohm) 12v THD 0.5% 350W RMS POWER (4ohm) 12v THD 0.5% 220W T.H.D 0.5% BANDWIDTH: 10-200 Hz S/N RATIO(A-WEIGHTED): 90dB INPUT SENSITIVITY: 0.35-6V LOW PASS: 50-200 Hz SUBSONIC: 10-50Hz CROSSOVER SLOPE: 12dB/24dB /oct BASS BOOST: 0-12dB(@45Hz) POWER FUSE: 30A•2 HIGH-LEVEL VOLTAGE: 0.53-9V Cable fitting size: +12V = 20mm2 GND = 20mm2 REM = 6mm2 SPEAKER = 6mm2 Current Draw (Max): 57A DIMENSIONS W: 183mm / (7.2IN) H: 60mm / (2.4 IN) L: 274mm / (10.8 IN) 10″ vented SQ loaded enclosure Subwoofer GZUW 10SQ-D2 Resonance-free aluminum cast basket 2″ copper voice coil High quality vented enclosure Airflow optimized ventilation tube Solid enclosure from MDF GZ Push terminal Power handling 450 Watts RMS Impedance 2x2 Ohm Xmax 20mm (p2p) Net volume 30 Liter Tuning frequenzy 32 Hz Roll-off frequenzy 32 Hz Ventilation port 1x7cm Port lenght 34cm Dimensions (w x h x d) 460 x 320 x 327mm Backwall angle 77°. |
Mарка:
Ground Zero
