Urbšanas darbagalds DP 55, Scheppach

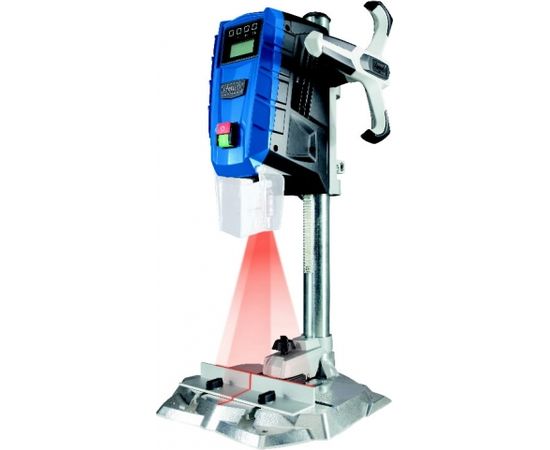

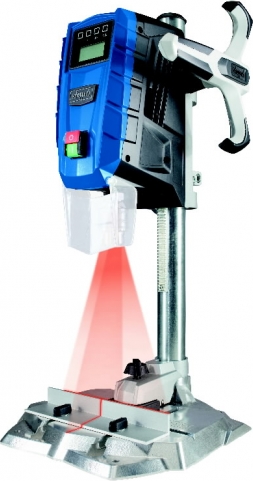

| For all accurate do-it-yourselfers with a small workshop, the scheppach DP55 drill press is the right choice, providing a digital display for precise setting of the speed. The drill is quickly clamped with a few simple steps and the workpiece can also be fi xed in seconds with the quick-release clamp. An integrated laser ensures precise drilling in steel and wood.
Dimensions L x W x H 380 x 250 x 675 mm
Base L x B x H 320 x 305 x 30 mm
Speed range 500 – 2600 rpm
Chuck cap 1.5 – 13 mm
Drill stroke 70 mm
Drill-Ø in wood 40 mm
Drill-Ø in steel 13 mm
Drive electronically controlled
Chuck to base max. 260 mm
Motor 230 – 240 V~ / 50 Hz
Input 710 W
• Precise setting of the speed of 500 - 2600 rpm via digital display
• Quick clamping of the drill into the precision drill chuck
• Integrated laser for precise drilling
• Quick-release clamp for fi xing the workpieces
• Powerful 710 W motor
• 260 mm distance between clamping chuck and table
• Chuck clamping range of 1.5 to 13 mm for maximum drill holes of 13 mm in
steel and of 40 mm in wood
• Stable 320 x 305 mm mounting plate | ||
|
Ražotājs:
SCHEPPACH
