MikroTik hAP ac2 RouterOS L4 128MB RAM, 5xGig LAN, 2.4/5GHz 802.11ac, 1xUSB

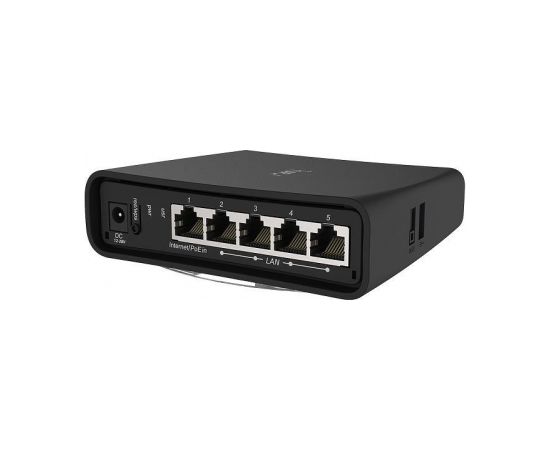

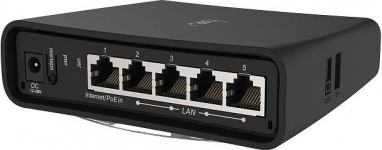

he hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem, and device supports IPsec hardware acceleration.

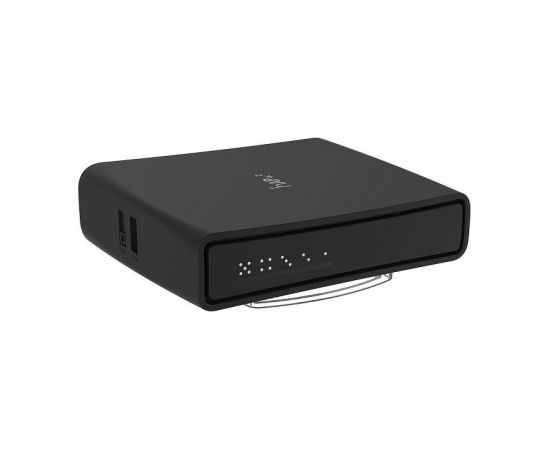

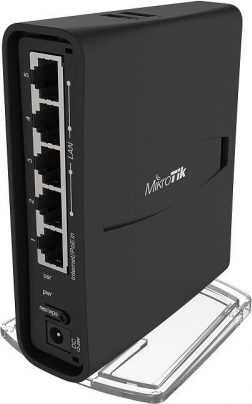

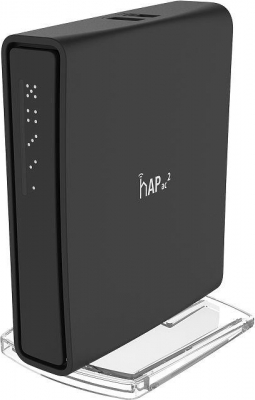

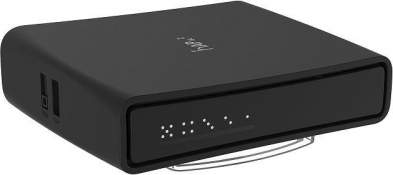

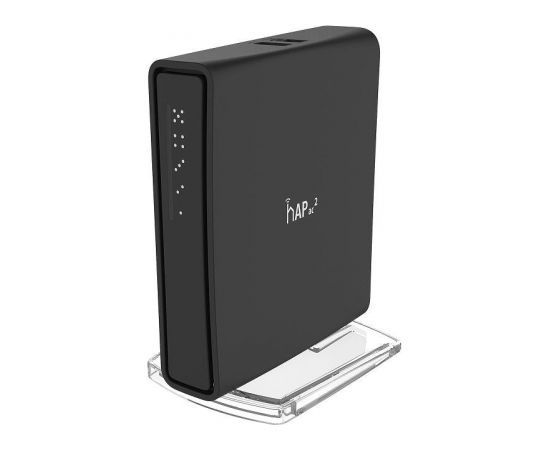

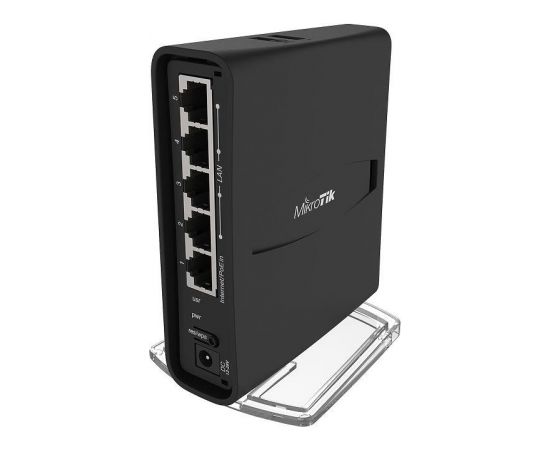

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
We have two versions available.
- hAP ac²-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- hAP ac² (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
Details
Product code RBD52G-5HacD2HnD-TC
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 34 x 119 x 98mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 50°C
MTBF Approximately 100'000 hours at 25C
Suggested price $69.00
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
AC speed AC1200
Ethernet
Details
10/100/1000 Ethernet ports 5
Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Powering
Details
PoE in Passive PoE
PoE in input Voltage 18-28 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-30 V
Max power consumption 21 W
Max power consumption without attachments 16 W
FAN count Passive
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
Other
Details
Mode button Yes
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 27 | -100 |
| 11MBit/s | 27 | -94 |
| 6MBit/s | 27 | -96 |
| 54MBit/s | 24 | -78 |
| MCS0 | 27 | -96 |
| MCS7 | 23 | -73 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 26 | -96 |
| 54MBit/s | 22 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 21 | -75 |
| MCS9 | 19 | -70 |
Ražotājs:
MIKROTIK
