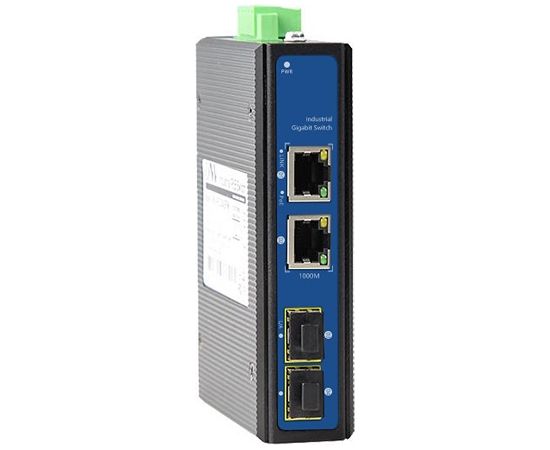

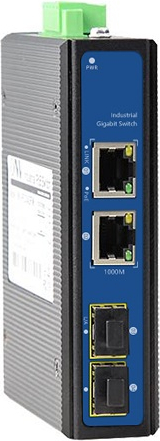

Extradigital PoE Switch 2 Ports 1000M with 2 SFP Ports 1000M

KODS: POE202PRO

Preces ID:1388361

114²⁰ ^€

Piegādātāja noliktavā: 4 prece(s)

+ −

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsEXTRADIGITAL

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa
Video

PoE Switch 2 Ports 1000M with 2 SFP Ports 1000M.

Features:
2x10/100/1000M PoE ports + 2x1000M SFP ports Industrial PoE Switch, port 1-2 support IEEE 802.3af/at.
PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port.
PoE default: 1, 2(+)/3, 6(-), alternative: 4, 5(+)/7, 8(-).
Input voltage: DC48-57V, Redundant dual power 5-bit industrial terminals.
IP protection level: IP40; Rail-type installation.
Specification:
Interface: 2x10/100/1000Base-T PoE ports (Data/Power).
2x1000Base-X uplink SFP fiber slot ports (Data).
2 set of V+, V- redundant DC power interface (5Pin Phoenix terminal).
Network Protocol:
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T.
IEEE802.3u 100Base-TX.
IEEE802.3ab 1000Base-T.
IEEE802.3z 1000Base-X.
IEEE802.3x.
PoE Standard: IEEE802.3af/at.
Ethernet Port Feature: Port 1-2 support 10/100/1000Base-T, auto-sensing, Full/half duplex MDI/MDI-X self-adaption.
SFP Port: Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC).
MAC: 8K.
Buffer Memory: 1M.
Twisted Pair Transmission:
10BASE-T: Cat3,4,5 UTP ( 100BASE-TX: Cat5 or later UTP ( 1000BASE-T: Cat5e or later UTP ( Optical Fiber Cable: Multi-mode: 850nm 0~550M; single mode: 1310nm 0~40KM,1550nm 0-120KM.
Power Supply Pin: Default:1/2 (+), 3/6 (-) optional: 4/5(+),7/8(-).
Working Voltage: 48-57VDC; 5P industrial Phoenix terminal, anti-reverse protection.
Max Power Per Port: 30W; IEEE802.3af/at.
Total PWR / Input Voltage: 36W/48VDC (IEEE802.3af); 60W/48VDC (IEEE802.3at).
Power Consumption: Standby:<4W; Full load:<32W; Standby:<5W; Full load:<60W.
LED Indicator: Power: PWR (green), Network: Link, Link/Act (yellow), PoE: PoE (green).
Power Supply: No, optional 48V/36W or 48V/60W industrial power supply.
Operation Temperature / Humidity: -40~+80°C; 5%~90% RH Non condensing.
Dimension (LxWxH): 119x100x30mm.
Weight: <0.6kg.
Installation: Desktop, 35mm DIN rail.
Lightning protection: 6KV 8/20us; Protection level: IP40.
Mechanical Properties: IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock); IEC60068-2-32 (free fall). Certification: CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS.

Warranty: 24 months.
