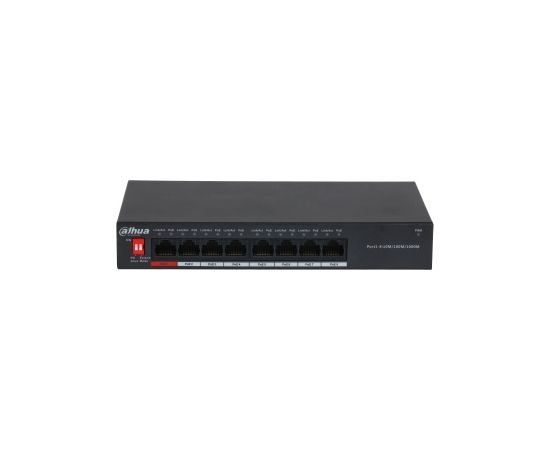

Dahua 8-Port PoE Switch PFS3008-8GT-96
| PoE šakotuvas 8*1000Mbps PoE portai, Total-96W, BT 90W Features: • 8-port unmanaged switch with 8-port PoE. • All-giga ports with large buffer memory, enabling high-definition access of large stream. • Long distance PoE: By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission (bandwidth reduced to 10Mbps). • 8-pin simultaneous PoE power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. • The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption rate of 90W per port. Suitable for powering high-power devices. • Intelligent PoE controls over power consumption and offers real-time monitoring. • Innovative PoE Watchdog can be switched on by dialing or turning on the WEB page switch. • Supports desktop-mount installation. • Supports IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az standards. • Conforms to IEEE802.3af and IEEE802.3at power supply standard. Technical Specifications: • Model PFS3008-8GT-96. • PoE ports: 8x 10/100/1000Mbps. • PoE Power consumption: Full load = 96W, Idling: 3W. • Power consumption management: yes. • PoE PIN Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-). • Communication standards: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3az; IEEE802.3ab. • PoE protocol: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt. • Switching capacity: 20 Gbps. • Packet forwarding rate: 11.9 Mpps. • Packet buffer memory: 1.5 Mbit. • MAC Table size: 8K. • Long distance PoE: 250 m long distance PoE transmission. • Application humidity: 5%~95%. • Power supply: 48V - 57V DC. • Thunder Protection Common Mode: 2 kV. • Differential mode: 0.5 kV. • Statics Protection Air discharge: 8 kV. • Contact discharge: 6 kV. • Working temperature: -10°C~55°C. • Weight: 490 g. • Dimensions(W×D×H): 190 mm × 100 mm × 30 mm. Transmission Performance: Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10ohm/100m Cable(m) - Load Capacity(W) - Bandwidth(Mbps) IEEE802.3bt 90W: 100m Cable; 71.3W Load Capacity; 1000Mbps Bandwidth. 150m Cable; 62W Load Capacity; 10Mbps Bandwidth. 200m Cable; 51W Load Capacity; 10Mbps Bandwidth. 250m Cable; 40W Load Capacity; 10Mbps Bandwidth. Hi-PoE 60W: 100m Cable; 53W Load Capacity; 1000Mbps Bandwidth. 150m Cable; 50W Load Capacity; 10Mbps Bandwidth. 200m Cable; 47W Load Capacity; 10Mbps Bandwidth. 250m Cable; 37W Load Capacity; 10Mbps Bandwidth. IEEE802.3at 30W: 100m Cable; 25.5W Load Capacity; 1000Mbps Bandwidth. 150m Cable; 25.5W Load Capacity; 10Mbps Bandwidth. 200m Cable; 25.5W Load Capacity; 10Mbps Bandwidth. 250m Cable; 25.5W Load Capacity; 10Mbps Bandwidth. Note: The actual transmission distance may vary due to power consumption of connected devices or the cable type and status. |
Ražotājs:
DAHUA
