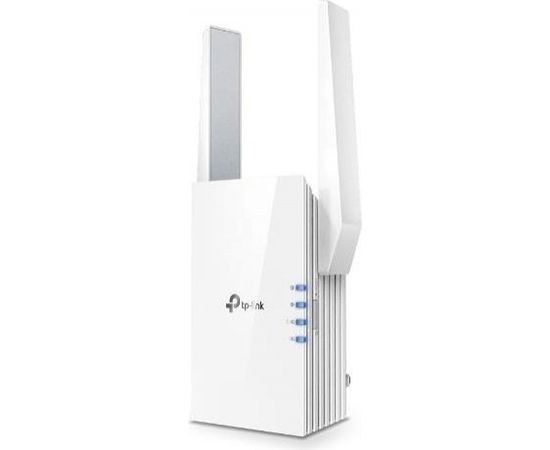

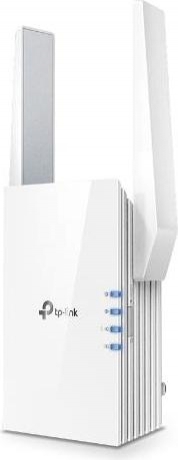

TP-LINK AX1500 Access Point 1500Mbps Wi-Fi 6 Range Extender
Extend WiFi Coverage: Eliminate WiFi dead zones by expanding high-performance WiFi using specially designed high-gain antennas.
Wi-Fi 6 Speeds: Enjoy smoother and more reliable streaming, gaming, downloading, and more with dual-band WiFi speeds up to 1.5 Gbps.1 2
Connect More Devices to Your Network: Connect more devices that are out of range from your main router while eliminating poor performance.
Gigabit Ethernet Port: Experience wired speed and reliability anywhere in your home with the gigabit ethernet port.
OneMeshTM Technology: Create a mesh network using compatible routers, like Archer A7, and range extenders so you never switch networks or lose signal. 3
Set Up in Minutes: Easily set up and manage your WiFi in a few quick and easy steps using the intelligent signal indicator and TP-Link Tether app (Android, iOS).
Universal Compatibility: Compatible with all WiFi-enabled devices and routers or access points. It even supports new AX phones, laptops and other devices.4
| HARDWARE FEATURES | |
|---|---|
| Ports | 1 Gigabit Ethernet Port |
| Button | WPS Button, Reset Button |
| Power Consumption | 10W |
| Dimensions ( W x D x H ) | 2.9×1.8×4.9 in. (74.0×46×124.8 mm) |
| Antenna | 2 External Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz |
| Reception Sensitivity | 5GHz: 11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm 11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm 11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm 2.4GHz: 11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm |
| Transmit Power | CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA-PSK2 encryptions |
| OTHERS | |
|---|---|
| Package Contents | Wi-Fi Range Extender RE505X Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Certifications | FCC, RoHS |
