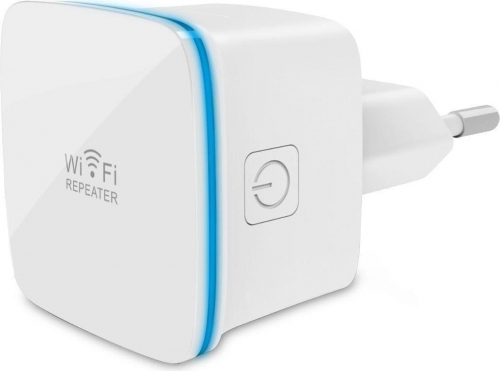

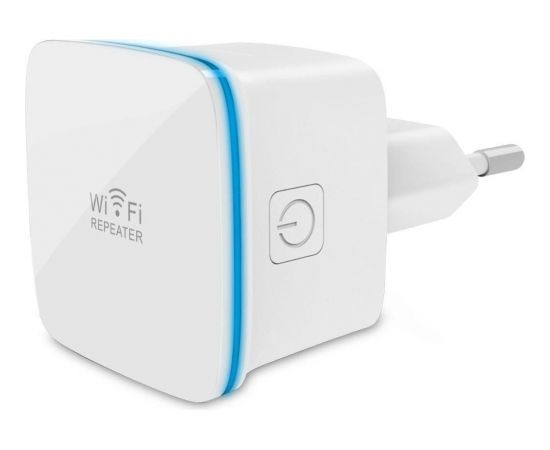

The Wi-Fi AP / Router I-WL-REPEATER7 is mainly used for providing free WiFi service in large areas such as factories, homes, offices or squares. It's able to repeat an existing 802.11n wireless signal and extend it to a larger scale, where a router or access point alone could not achieve. I-WL-REPEATER7 supports wireless networking at 2.4 GHz and is capable of supporting transmission speeds up to 300Mbps. It has 2 antennas providing even better wireless performance, increased transmission speed and signal stability by automatically avoiding channel conflict through the channel selection function.
Features
- Delete Wi-Fi dead zones
- Doubles the Wi-Fi network coverage with ease
- E 'portable and compact, ideal for home use and traveling
- Connect to multiple devices simultaneously Network
- Complies with IEEE 802.11n and IEEE 802.11b / g
- With 2 antennas to provide a transfer rate of 300Mbps data
- Supports WEP wireless security, WPA / WPA2
- Easy wireless security encryption by simply pressing the WPS button
- With Wizard software provides easy configuration
- Compact design for wall outlet, for convenient positioning
|
| Platums |
41 mm |
| Dziļums |
27 mm |
| Augstums |
41 mm |
| Svars |
89 g |
| Maiņstrāvas ievades spriegums |
100 - 240 V |
| Maiņstrāvas ievades frekvence |
50 - 60 Hz |
| Ieejas strāva |
0.1 A |
| Izejas spriegums |
5 V |
| Izejas strāva |
0,5 A |
| Power over Ethernet (PoE) |
Jā |
| Kontakdakšas veids |
C tips |
| Darbības temperatūras amplitūda (T-T) |
0 - 40 °C |
| Uzglabāšanas temperatūras amplitūda (T-T) |
-10 - 70 °C |
| Darbības relatīvā mitruma amplitūda |
10 - 90% |
| Uzglabāšanas relatīvā mitruma amplitūda |
10 - 90% |
| Kabeļa likšanas tehnoloģija |
10/100Base-T(X) |
| Tīkla standarts |
IEEE 802.3af |
| Wi-Fi |
Jā |
| Wi-Fi standartu |
802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Bezvadu LAN datu pārsūtīšanas ātrums (max) |
300 Mbit/s |
| Wi-Fi josla |
Viena frekvenču josla (2.4 GHz) |
| Drošības algoritma atbalstīts |
64-bit WEP,128-bit WEP,WEP,WPA,WPA2 |
| Kanālu skaits (ES) |
13 kanāli |
| Tīkla bāzēts menedžments |
Jā |
| Manuāls |
Jā |
| Antenu daudzums |
2 |
| Antenas sasniedzmības līmenis (max) |
3 dBi |
| Antenas tips |
Iekšējs |
| Produkta krāsa |
Balts |
| LED indikatori |
Jauda |
| Izcelsmes valsts |
Ķīna |
| Integrēts on/off slēdzis |
Jā |
| Atiestates poga |
Jā |
| Sertifikācija |
CE, FCC |
| Tips |
Tīkla atkārtotājs |
| Maksimālais pārskaitījums attālums |
200 m |
| Chipset |
MT7628K |
| Ethernet LAN datu pārsūtīšanas ātrums |
10,100 Mbit/s |
| WPS poga |
Jā |
| Atbalstītās Windows operētājsistēmas |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 98,Windows 98SE,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac saderība |
Jā |
| Mac operētājsistēmas atbalstītas |
Jā |
| Linux operētājsistēma atbalstīta |
Jā |
|
