| Processor boost frequency | 5.2 GHz |
| Processor base power | 120 W |
| Processor generation | AMD Ryzen 9000 Series |
| Processor frequency | 4.7 GHz |
| Processor model | 9800X3D |
| Processor family | AMD Ryzen™ 7 |
| Processor cache | 96 MB |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor cache type | L3 |
| Processor manufacturer | AMD |
| Number of processors installed | 1 |
| Processor socket | Socket AM5 |
| Discrete graphics card model | NVIDIA GeForce RTX 5090 |
| CUDA | Jā |
| On-board GPU manufacturer | AMD |
| On-board graphics card cores | 2 |
| Discrete graphics card memory | 32 GB |
| NVIDIA GameWorks VR | Jā |
| On-board graphics card | Jā |
| On-board graphics card model | AMD Radeon Graphics |
| NVIDIA G-SYNC | Jā |
| Number of discrete graphics cards | 1 |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
| On-board graphics card family | AMD Radeon Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Jā |
| Discrete graphics memory type | GDDR7 |
| AMD FreeSync | Jā |
| Maximum internal memory | 192 GB |
| Non-ECC | Jā |
| Internal memory | 32 GB |
| Memory channels | Dual-channel |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 6000 MHz |
| Memory slots | 4x DIMM |
| Internal memory manufacturer | Kingston |
| Memory layout (slots x size) | 2 x 16 GB |
| RGB backlighting | Jā |
| Product colour | Black |
| Water cooling system | Jā |
| Number of 3.5" bays | 4 |
| Viewing window | Jā |
| Number of 2.5" bays | 4 |
| Refurbished | Nē |
| Housing material | Metal, Plastic, Tempered glass |
| VESA mounting | Nē |
| Chassis type | Midi Tower |
| Power supply | 1000 W |
| Power supply input voltage | 100-240 V |
| 80 PLUS certification | 80 PLUS Gold |
| Weight | 15 kg |
| Height | 446 mm |
| Depth | 450 mm |
| Width | 285 mm |
| Ethernet LAN data rates | 1000 Mbit/s |
| Antenna type | 2x2 |
| Bluetooth | Jā |
| Wi-Fi standards | 802.11g |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth version | 5.2 |
| Wi-Fi | Jā |
| Ethernet LAN | Jā |

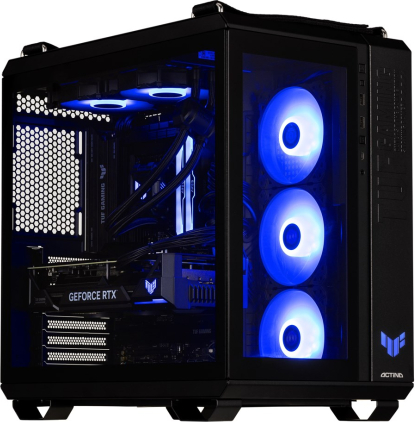

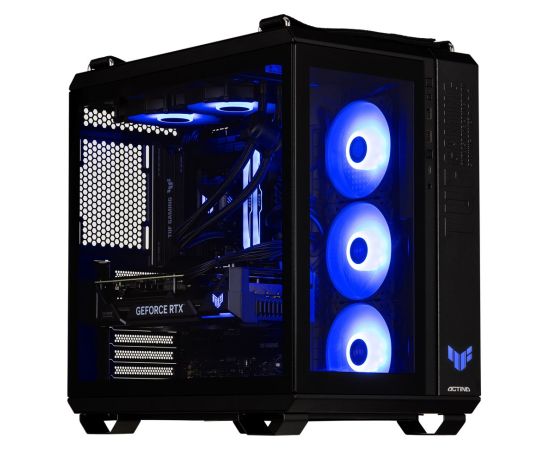

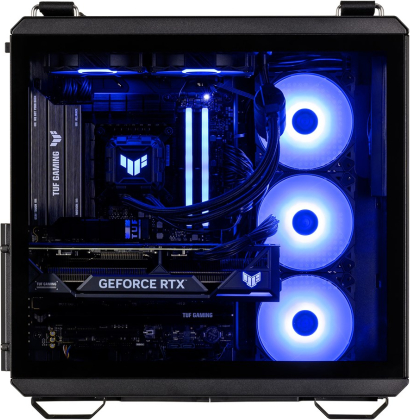

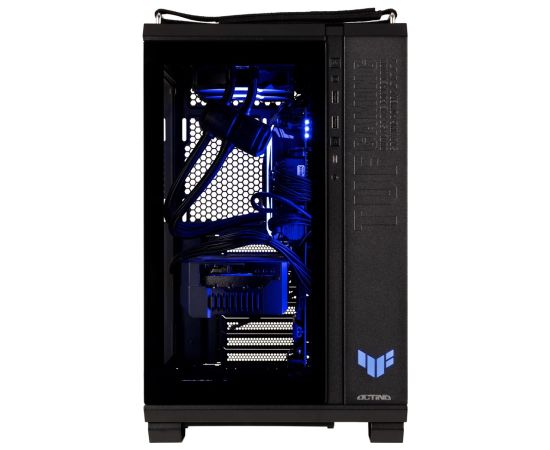

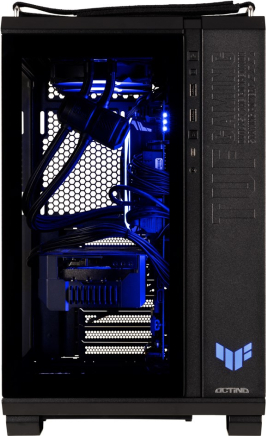

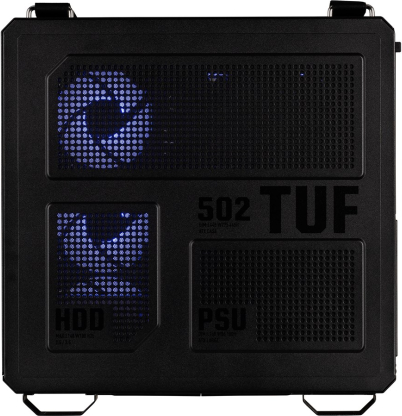

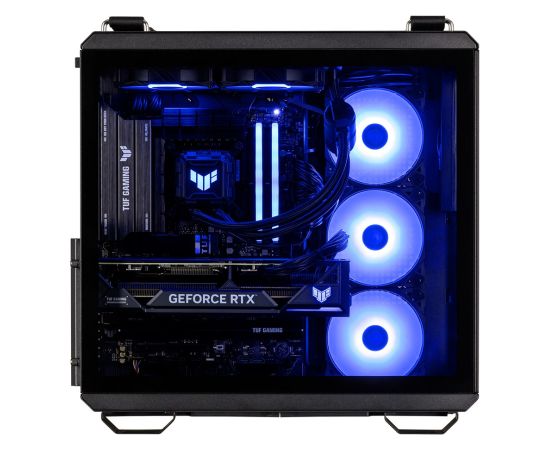

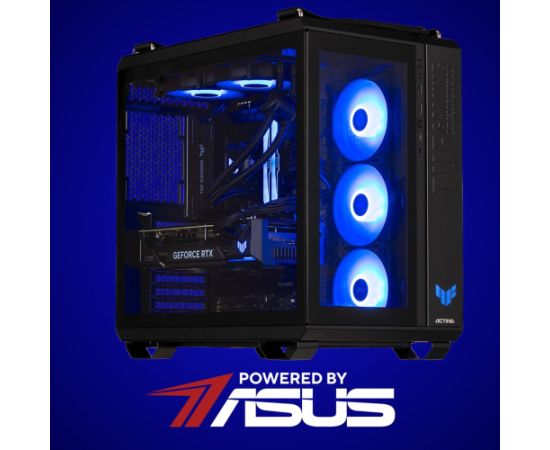

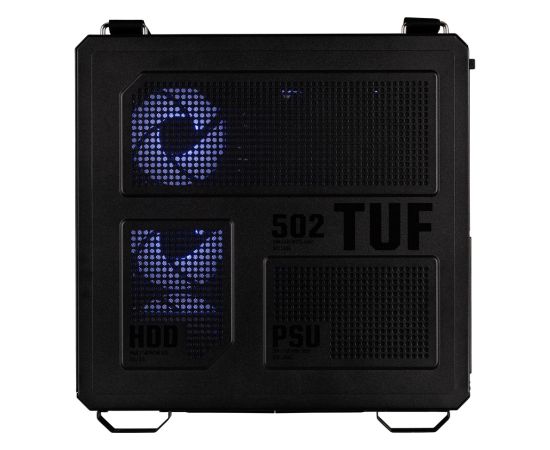

| Internal components | ASUS TUF Gaming B650M-PLUS WIFI / NVIDIA GeForce RTX 5090 / Kingston Fury Beast RGB / WD Black SN850X / ASUS TUF Gaming LC II 360 ARGB/ ASUS TUF Gaming TF120 ARGB / ASUS TUF Gaming 1000W / ASUS TUF Gaming GT502 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD B650 |
| Powered by | ASUS |
| Market positioning | Gaming |
| Virtual Reality (VR) ready | Jā |
| Product type | PC |
| Mouse included | Nē |
| Display included | Nē |
| Keyboard included | Nē |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Bundled software | Bitdefender Internet Security |
| Operating system installed | Nē |
| Total storage capacity | 2 TB |
| Storage media | SSD |
| Optical drive type | Nē |
| SSD form factor | M.2 |
| SSD interface | PCI Express |
| NVMe | Jā |
| Total SSDs capacity | 2 TB |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Total HDDs capacity | 0 GB |
| Number of storage drives supported | 6 |
| Intel® Optane™ Memory module installed | Nē |
| Card reader integrated | Nē |
| Number of storage drives installed | 1 |
| SSD capacity | 2 TB |
| Number of SSDs installed | 1 |
| HDD capacity | 0 GB |
| Number of rear USB ports | 8 |
| Intel® Thunderbolt 5 | Nē |
| Number of front audio ports | 1 |
| Number of rear audio ports | 5 |
| DisplayPorts quantity | 4 |
| S/PDIF out port | Jā |
| DC-in jack | Nē |
| Number of front USB ports | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Intel® Thunderbolt 4 | Nē |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Number of SATA III connectors | 4 |
| Line-in | Jā |
| Line-out | Jā |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Combo headphone/mic port | Jā |
| DVI port | Nē |
| Microphone in | Jā |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| Fiber NIC port (Flex I/O) | Nē |
| Special features | The specification and description are for illustrative purposes only. |
| TV tuner integrated | Nē |
| Built-in microphone | Nē |
| Warnings | Do not open the computer case without disconnecting it from the power source. |
