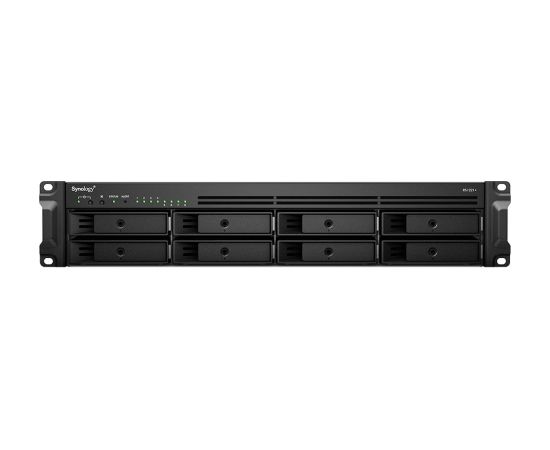

Synology RS1221 + file server

Product description
Compact and reliable
The RS1221 + / RS1221RP + with a depth of only 30 to 38 centimeters is designed for deployments where little space is required. Offering over 100,000 4K random read IOPS and 2315MB / s sequential read, the RS1221 + / RS1221RP + is geared to the heavy workloads of data-intensive environments. RS1221RP + additionally provides an additional level of protection thanks to redundant power supplies.


Compact, space-saving design
The RS1221 + and its RX418 expansion units are designed to help you save space in compact deployments. At just 30 centimeters, or half the length of a typical 2U unit, it fits perfectly into 2-post or shallow rack-mount housings. The RS1221RP + with two power supplies is 38 cm long and also fits most shallow-depth enclosures.


With room to grow with you
Easily upgrade your RS1221 + / RS1221RP + to suit your usage environment, whether it's performance, faster network, or greater capacity.


Fully certified storage virtualization solutions
Synology iSCSI storage fully supports popular virtualization solutions to increase work efficiency with a simple management interface. VMware vSphere 6 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally, Synology Storage Console enables even more simplified storage allocation and management options for VMware and Windows environments.

Works best with Synology drives
Designed to handle intensive 24/7 workloads, Synology drives consistently deliver top performance.

Technical Specifications
PRODUCT
Manufacturer
Synology
Producent code
RS1221 +
EAN
4711174723683
Variant
One power supply
DISKS
Number of pockets 2.5 "/3.5"
8
M.2 disk slots
No
Installed disks
Lack
Maximum disk capacity
128 TB
RAID mode used
Lack
RAID modes
0
JBOD
1
5
6
Hot-swap bay
No
PROCESSOR
Processor
AMD Ryzen V1500B
Number of cores
4
Processor clock
2.2 GHz
MEMORY
RAM
4 GB
Type of memory
DDR4
Maximum memory capacity
32 GB
NETWORK
1 Gigabit Ethernet ports
4
2.5 Gigabit Ethernet ports
No
5 Gigabit Ethernet ports
No
10 Gigabit Ethernet ports
No
WiFi support
No
Wake On Lan
Yes
ADDITIONAL PORTS
HDMI connectors
Lack
USB 3.0 connectors
2
USB-C connectors
Lack
Thunderbolt connectors
Lack
FUNCTIONALITIES
FTP server
Yes
Media server (DLNA)
Yes
Cloud Station
No
IP CAMERAS
Number of free licenses for the operation of IP cameras
2
Maximum number of supported IP cameras
40
PHYSICAL
Housing
Rack 2U
Height [mm]
88
Width [mm]
482
Depth [mm]
407.5
Weight [g]
11700
