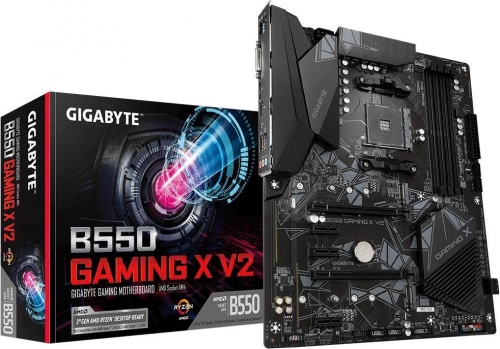

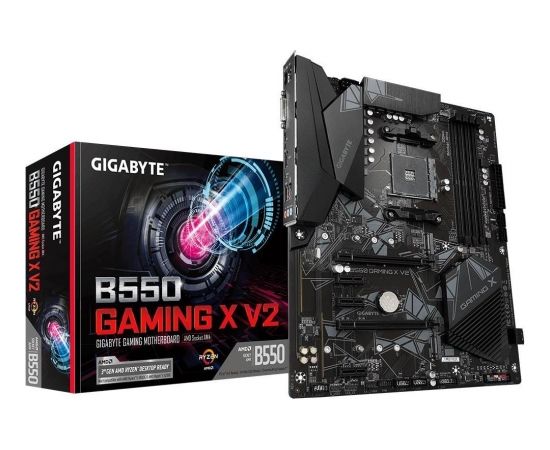

MB AMD B550 SAM4 ATX/B550 GAMING X V2 GIGABYTE
shape factorATX
chipsetAMD B550
CPU-CompatibilityRyzen 5000, Ryzen 4000G, Ryzen 3000, without TDP limitation (Manufacturer-list)
VRM8 real phases (5+3), 13 virtual phases (10+3), PWM-Controller: RAA 229004 (max. 8 phases)
MOSFETs CPU10x 46A 4C10N/4C06N
MOSFETs SoC3x 46A 4C10N/4C06N
RAM4x DDR4 DIMM, dual PC4-37866U/DDR4-4733 (OC), max. 128GB (UDIMM)
Extension slots1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x2), 3x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242)
external connectors1x DVI-D (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-A 3.1 (10Gb/s, B550), 3x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8118AS), 3x jack, 1x PS/2 Combo
Internal connectors1x USB-C 3.0 Key-A Header (5Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B550), 1x TPM-Header
Header Cooling1x CPU fan 4-Pin, 1x CPU fan/pump 4-Pin, 3x fan 4-Pin
Header Lighting3x 4-Pin RGB (+12V/G/R/B, max. 2A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 5A)
buttons/SwitchesUSB BIOS Flashback/Q-Flash Plus (external)
Audio7.1 (Realtek ALC887)
GraphicsiGPU
Wirelessnot available
RAID level0/1/10 (B550)
Multi-GPUnot available
Power connections1x 24-Pin ATX, 1x 8-Pin EPS12V
Lightingnot available
BIOS1x 32MB (256Mb)
Special featuresaudio+solid capacitors, I/O-shield integrated, ECC-support
Ražotājs:
GIGABYTE
