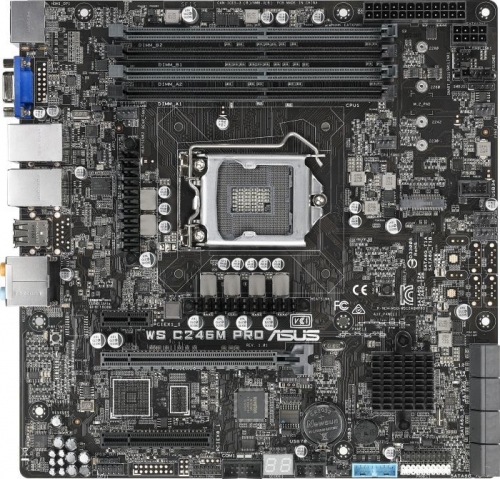

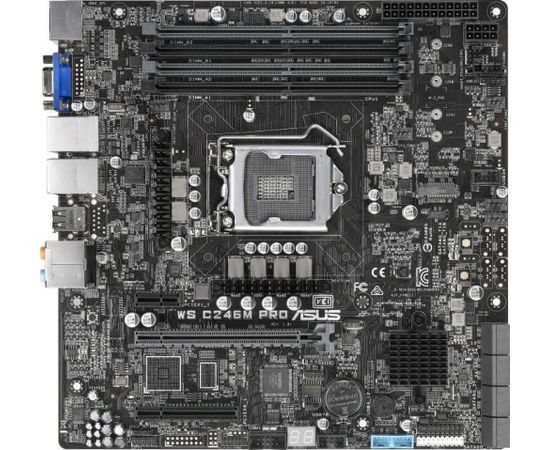

Asus WS C246M PRO - 1151
Product description
Construction: microATX
Type: 1x Intel Socket 1151 v2
Chipset: Intel C246
RAM: 4x DDR4 DIMM, dual PC4-21300E /? DDR4-2666, max. 64GB (UDIMM)
Expansion slots: 1x PCIe 3.0 x16, 1x PCIe 3.0 x8 (x4), 1x PCIe 2.0 x1, 1x M.2 /? M-Key (PCIe 3.0 x4 /? SATA, 2280 /? 2260 /? 2242 / ? 2230)
External connectors: 1x VGA, 1x HDMI 1.4, 1x DisplayPort 1.2, 2x USB-A 3.1 (C246), 2x USB-A 3.0, 2x USB-A 2.0, 2x Gb LAN (Intel I219-LM /? Intel I210 -AT), 5x jack, 1x Toslink
Internal connectors: 2x USB 3.0, 4x USB 2.0, 8x SATA 6Gb / s (C246), 1x serial port, 1x TPM-Header
Header Cooling: 1x CPU 4-Pin fans, 4x fans 4-Pin
Header Lighting: None
Buttons / Switches: Power Button (internal), USB BIOS Flashback (internal)
Audio: 7.1 (Realtek ALC887)
RAID Level: 0 /? 1 /? 5 /? 10 (C246)
Multi GPU: None
Power Connectors: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Graphics: IGP (via CPU /? APU)
Lighting: none
Additional product features: Audio + solid capacitors, diagnostic LED
Warranty: three years (only available in stores)
