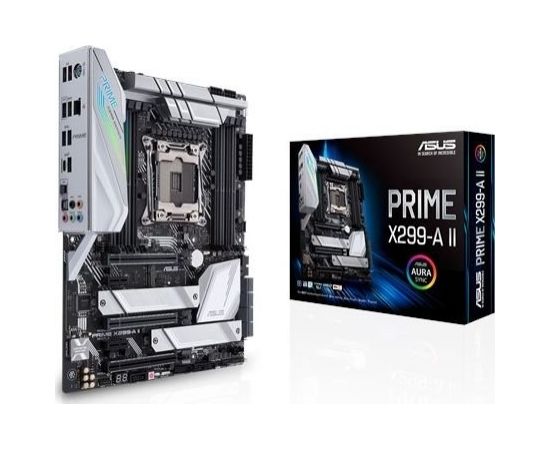

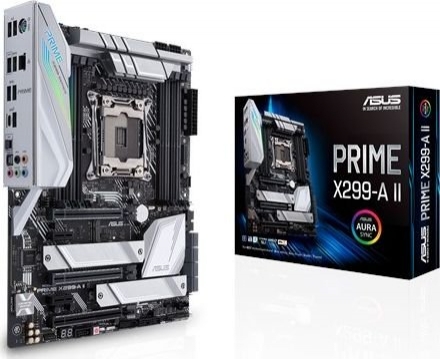

Asus PRIME X299-A II
shape factorATX
chipsetIntel X299 (platform "Glacier Falls")
RAM8x DDR4 DIMM, quad PC4-34133U/DDR4-4266 (OC), max. 256GB (UDIMM)
Extension slots3x PCIe 3.0 x16 (2x x16, 1x x8), 2x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 2x M.2/M-Key (PCIe 3.0 x4, 22110/2280/2260/2242), 1x M.2/E-Key (PCIe, 2230)
external connectors1x USB-C 3.1 (10Gb/s, ASM3142), 1x USB-A 3.1 (10Gb/s, ASM3142), 4x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x Gb LAN (Intel I219-V), 5x jack, 1x toslink, 1x PS/2 Combo
Internal connectors1x USB-C 3.1 Key-A Header (10Gb/s, ASM3142), 2x USB 3.0 Header (5Gb/s, 4x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 8x SATA 6Gb/s (X299), 1x Thunderbolt-Header 5-Pin, 1x VROC-Header, 1x ASUS Node
Header Cooling2x CPU fan 4-Pin, 4x fan 4-Pin, 1x AIO-pump 4-Pin, 1x pump 4-Pin, 1x Thermal-sensor
Header Lighting2x 4-Pin RGB (+12V/G/R/B, max. 3A), 1x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
buttons/SwitchesPower-Button (internal), USB BIOS Flashback (external)
Audio7.1 (Realtek ALC1220), DTS:X Ultra
Graphicsnot available
Wirelessnot available
RAID level0/1/5/10 (X299)
Multi-GPUNVIDIA 3-Way SLI (x16/x16, x16/x16/x8), AMD 3-Way-CrossFireX (x16/x16, x16/x16/x8)
Power connections1x 24-Pin ATX, 2x 8-Pin EPS12V
LightingRGB, 1 zone (I/O cover)
Special featuresaudio+solid capacitors, Diagnostic LED (segment indication), Diagnostic LED (indicators), 2x M.2-passive cooler |
