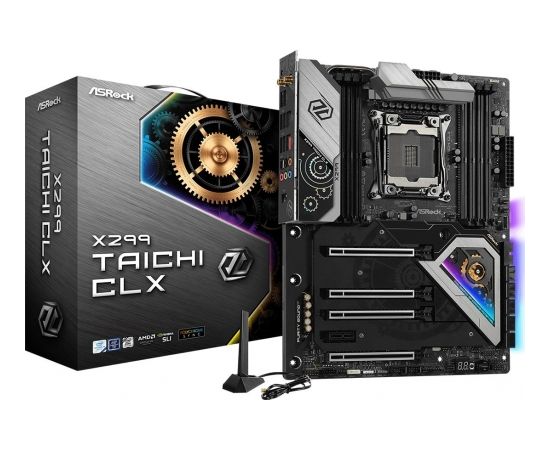

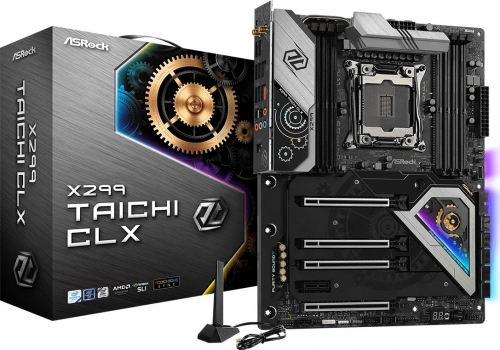

ASRock X299 TAICHI CLX
shape factorATX
chipsetIntel X299 (platform "Glacier Falls")
RAM8x DDR4 DIMM, quad PC4-33600U/DDR4-4200 (OC), max. 256GB (UDIMM)
Extension slots4x PCIe 3.0 x16 (2x x16, 2x x8), 1x PCIe 2.0 x1, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 2x M.2/M-Key (PCIe 3.0 x4, 2280/2260/2242), 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module)
external connectors1x USB-C 3.2 (20Gb/s, ASM3242), 4x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125AG), 1x Gb LAN (Intel I219-V), 5x jack, 1x toslink
Internal connectors1x USB-C 3.2 (20Gb/s, 20-Pin Key-A Header, ASM3142), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 8x SATA 6Gb/s (X299), 2x SATA 6Gb/s (ASM1061), 1x Thunderbolt AIC (5-Pin Header), 1x VROC-Header, 1x TPM-Header
Header Cooling1x CPU fan 4-Pin, 1x CPU fan/pump 4-Pin, 5x fan/pump 4-Pin
Header Lighting2x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
buttons/SwitchesPower-Button (internal), Reset-Button (internal), clear-CMOS-Button (external)
Audio7.1 (Realtek ALC1220), DTS Connect
Graphicsnot available
WirelessWLAN 802.11a/b/g/n/ac/ax (2x2, Intel AX200), Bluetooth 5.1
RAID level0/1/5/10 (X299)
Multi-GPUNVIDIA 3-Way SLI (x16/x16, x16/x16/x8), AMD 3-Way-CrossFireX (x16/x16, x16/x16/x8)
Power connections1x 24-Pin ATX, 2x 8-Pin EPS12V
LightingRGB, 2 zones (chipset cooler, page right)
BIOSnot specified, Dual-BIOS
Special featuresaudio+solid capacitors, I/O-shield integrated, Diagnostic LED (segment indication), 3x M.2-passive cooler |
