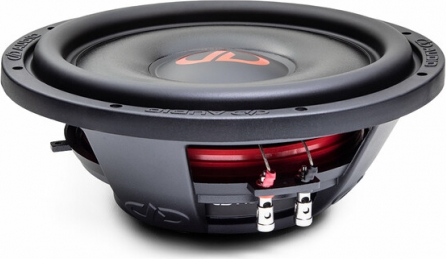

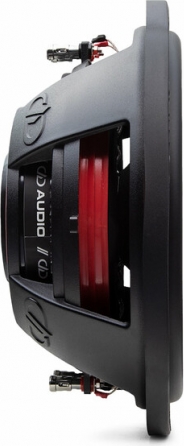

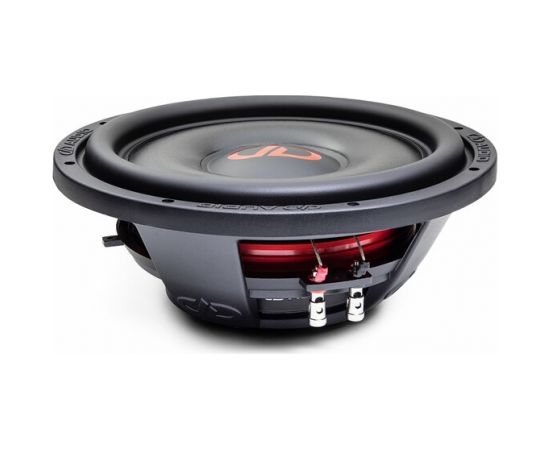

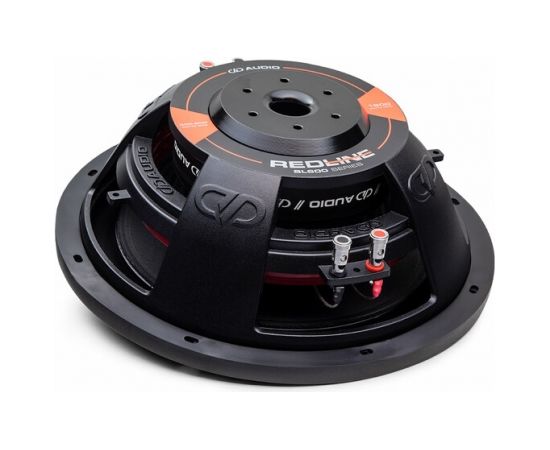

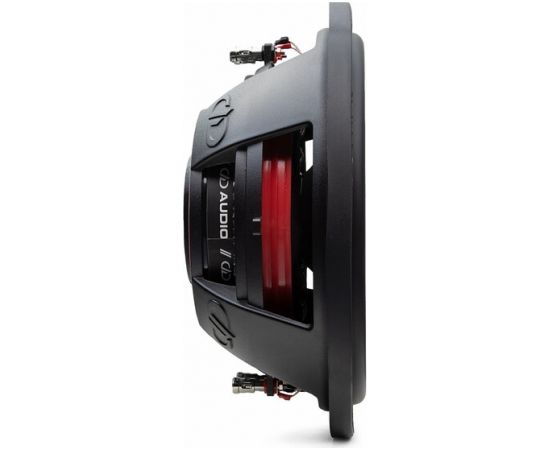

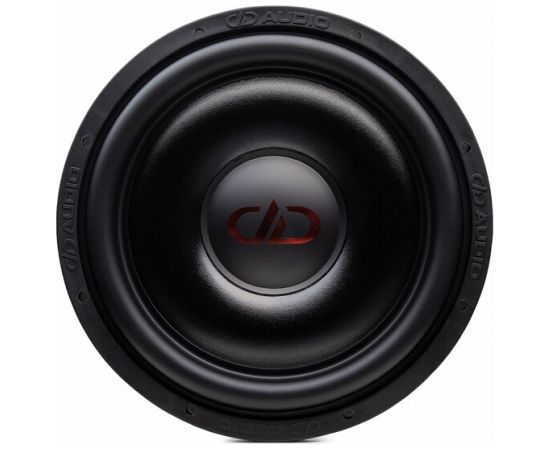

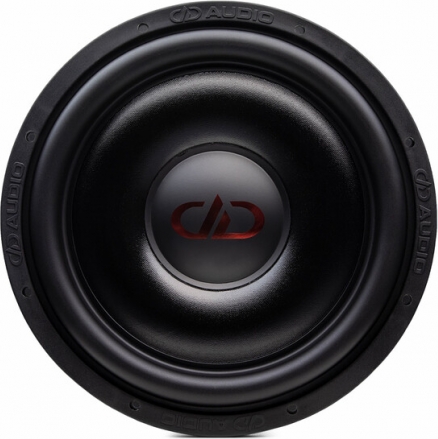

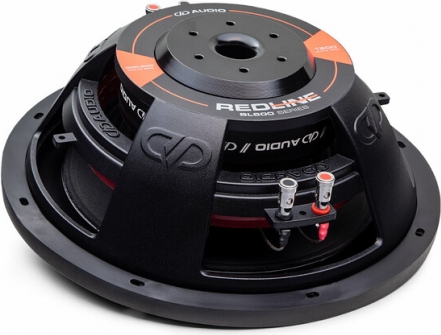

DD Audio SL612 D2
| The SL600 series subwoofers, which include the DD Audio HI-DEF SL612 12″ (30cm) flat subwoofer, feature a very shallow mounting depth, and the suspensions have been tuned to perform exceptionally well in sealed and small bass-reflex enclosures.
To ensure high power handling, good cooling and large excursion, the SL600 subwoofers feature 2.5-inch high-temperature voice coils, 72-ounce magnets, rear panel coil venting and an EROM surround.
One of the unique features of the SL600 is the three-layer, low-profile diaphragm cone. By compressing a layer of foam between two layers of cellulose, the cone is as light and stiff as a standard cone, yet flat enough to allow a suspension travel equivalent to that of a full-sized subwoofer. Features: 12″ (30cm) subwoofer with EROM surround. High temperature 2.5″ voice coil Double layer spider system Three-layer flat diaphragm body 72oz magnet Coil gap ventilation at rear plate DD cast aluminum frame Speaker size (In): 12 Watts RMS: 300 - 600 Watt peak power: 1200 Impedance: D2 Voice coil (inch): 2.5 Data: Fs (Hz): 27 Qms: 7.906 Qes: 0.432 Qts: 0.409 Vas: 68.349 Xmech (MM): 40 Xmax (MM): 14.5 Dimensions: Frame outer diameter (cm): 31.9 Frame outer diameter with gasket(cm): 32.5 Mounting diameter(cm): 28.7 Mounting depth(cm): 10.5 Engine diameter(cm): 16,51 Motor depth(cm): 3.81 woofer displacement : 0.06 litre Shipping weight: 8 kg Enclosure Recommendation: Closed cabinet : 22.5-42 litres Bass reflex cabinet : 28-50 litres |
Ražotājs:
DD AUDIO
