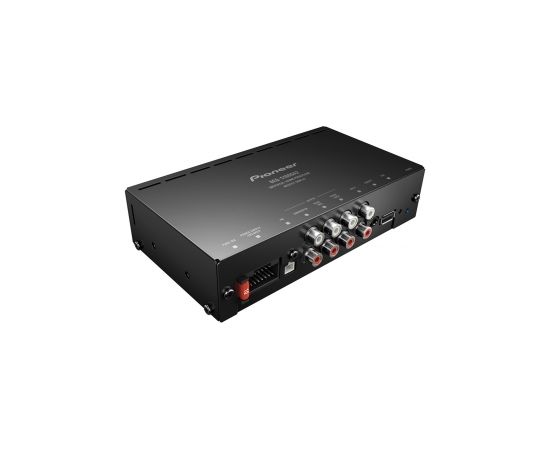

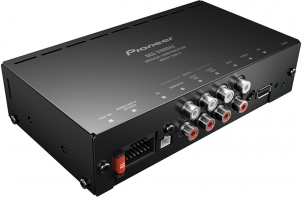

Pioneer DEQ-S1000A2 Universal Sound Processor

The DEQ-S1000A2 is Pioneer′s Universal Sound Processor, designed for upgrading the sound quality of your factory vehicle stereo and speakers. Since the originally fitted stereo does not need to be replaced, installation* is simple. Due to it′s compact size, it can be installed out of sight, adding to a cleaner installation. The DEQ-S1000A2 incorporates Pioneer′s full custom high performance 48-bit dual-core DSP for high quality premium sound reproduction. An internal clock and pattern are optimally tuned. Sound degradation from jitter noise is thoroughly eliminated. When used along with Pioneer′s Sound Tune app, you can bring high end audio to the basic factory speakers. All operations are performed easily through a compatible smartphone and a wide range of settings are accessible from live simulation settings to 31-band custom equaliser settings via the Sound Tune app. The DEQ-S1000A2 features easier connectivity thanks to the included ISO T-Harness and OTG cables for Android smartphone users. (*Optional vehicle specific cables may be required, sold separately).

Pioneer Sound Tune App
USB Input 1
Accessories 1 Remote Control
Maximum power 4 x 50 W
2 x 50 W (4Ω) for subwoofer
1 x 70 W (2Ω) for subwoofer
Frequency response 10Hz to 20kHz
S/N ratio 105 dB
Max. current consumption 10 A
Chassis size (W x H x D) 170 x 40 x 95
Unit weight 0.59
Compact size
RCA terminals Yes
Speaker line input sensor Yes
Apple Compatibility
Made for iPhone
Compatible Generations • iPhone X / iPhone 8 / iPhone 8 Plus
• iPhone 7 / iPhone 7 Plus / iPhone SE
• iPhone 6s / iPhone 6s Plus / iPhone 6 / iPhone 6 Plus
• iPhone 5s / iPhone 5c / iPhone 5
Supported Functions • Battery charging
• Music playback
Android Compatibility
Compatible with Android
Quick Charge for Android
Audio
13-band Graphical EQ
MOSFET 50 W x 4 Amplifier
Network Mode 3-Way Network Mode
Listening Position Selector
Manual TA (Time Alignment)
High Pass Filter
Low Pass Filter
Subwoofer Control
RCA Pre-Outs 3. (Front, rear and subwoofer)
High Voltage Output (4Volt)
Advanced Audio Features Exclusive Designed Audio Parts.
Source Calibration, (Factory Time Alignment and EQ Cancel).
31-Band Graphic EQ When Used With Pioneer Sound Tune App.
Live Simulation When Used With Pioneer Sound Tune App.
FLAC
Connections
Hand Held Remote Control Included
