Match M 5.4DSP

M 5.4DSP
Preces ID:1193355
59980
Piegādātāja noliktavā: 2 prece(s)
+
Piegāde
Apmaksas veidi
Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

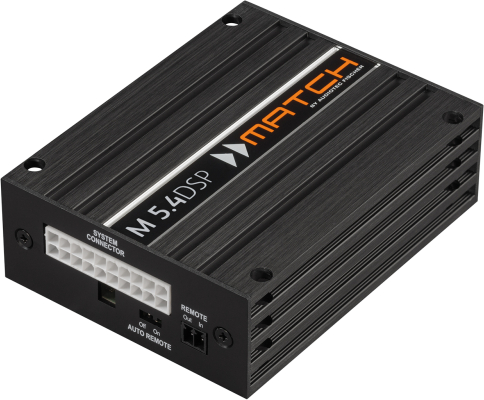

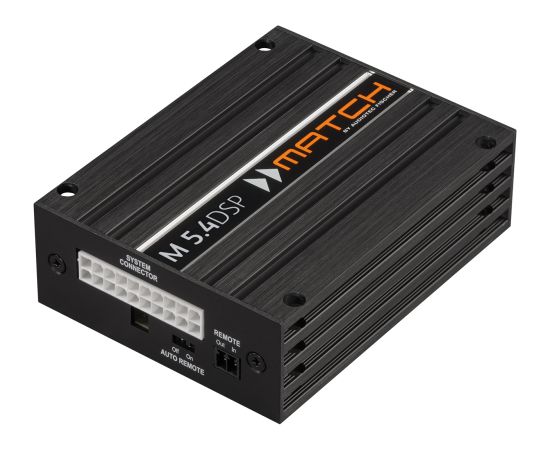

<p>Miniatur amplifier for powerful sound upgrades<br>The new M 5.4DSP is a true giant in terms of power, while being barely larger than a smartphone. With incredible 400/ 800 Watts RMS/ Max. output power and the latest DSP technology, it dramatically improves every standard sound system and brings real hifi sound into your car.<br>Ultra-compact installation<br>In modern vehicles, the space available for sound upgrades is becoming increasingly limited and presents new challenges to installers. Thanks to its minimal dimensions, the M 5.4DSP can be mounted even in the most difficult space conditions and opens up new, unimagined possibilities in the choice of installation location.<br>In addition, the all-new Smart Control Port (SCP) offers a significantly more space-saving connection due to its extremely compact and securely locking connector. Via the SCP, all Audiotec Fischer remote controls – such as CONDUCTOR or URC.3 – can be connected and easily placed even in the smallest installation positions. In addition, the new Smart Control Port (SCP) offers a significantly more space-saving connection thanks to its extremely compact, securely locking connector. A direct power supply to the controller via the SCP is also possible, which makes an additional power cable unnecessary and simplifies installation even more.</p>

Output power RMS
- @ 4 OhmsHighPower mode: 4 x 60 Watts
MidPower mode: 4 x 35 Watts
- @ 2 Ohms-
- @ 1 Ohm-
- bridged @ 4 Ohms-
- bridged @ 2 Ohms-
- Subwoofer output @ 4 OhmsHigh- and MidPower mode: 1 x 90 Watts
- Subwoofer output @ 2 OhmsHigh- and MidPower mode: 1 x 160 Watts
Amplifier technologyClass GD

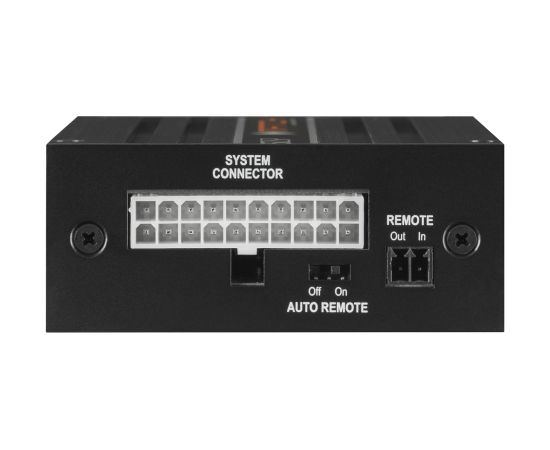

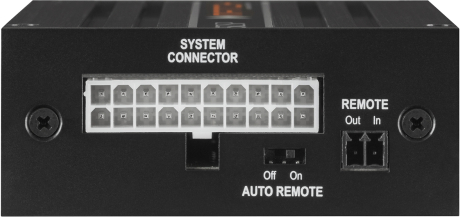

Inputs4 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Remote in
Input sensitivity5 - 11 Volts
Input impedance RCA / Cinch-
Input impedance highlevel9 - 33 Ohms with ADEP.3

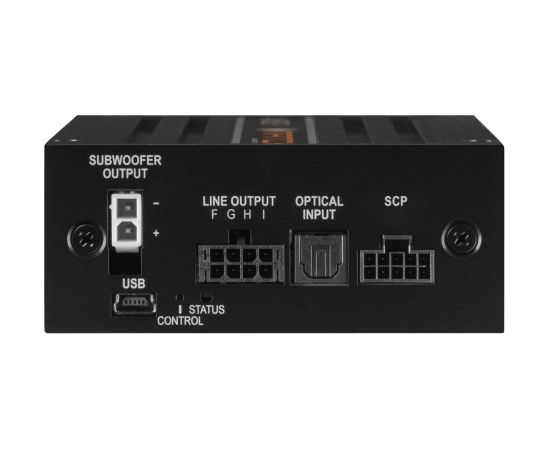

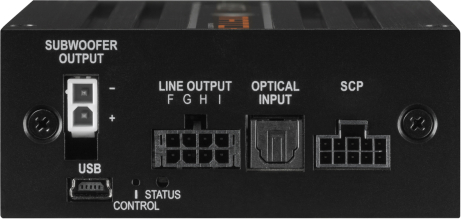

Outputs
5 x Speaker output
4 x RCA / Cinch
1 x Remote Out

Output voltage RCA / Cinch3 Volts
Frequency response20 Hz - 20,000 Hz
DSP resolution64 Bit
DSP power295 MHz (1.2 billion MAC operations/second)
Sampling rate48 kHz
DSP typeAudio signal processor
Signal converters
A/D: BurrBrown
D/A: BurrBrown

Signal-to-noise ratio digital input 105 dB (A-weighted)
Signal-to-noise ratio analog input 99 dB (A-weighted)
Distortion (THD) 0.03 %
Damping factor 50
Operating voltage10.5 - 17 Volts (max. 5 sec. down to 6 Volts)
Power ratingDC 12 V ⎓ 40 A max.
Idle current280 mA
Max. remote output current500 mA
Fuse1 x 30 A Maxi-fuse (APX)
Additional features32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch, Smart Control Port, Start-Stop capability, USB
Dimensions (H x W x D)35 x 85 x 110 mm / 1.34 x 3.35 x 4.33″
Scope of delivery
1 x MATCH micro amplifier M 5.4DSP
1 x Control Input-to-SCP adaptor
1 x USB cable
1 x Connection cable PP-IOC (0.50 meter)
1 x Subwoofer connection cable PP-SOC (0.45 meter)
1 x Line Output-to-RCA cable
1 x Mounting material
1 x Instruction manual.
