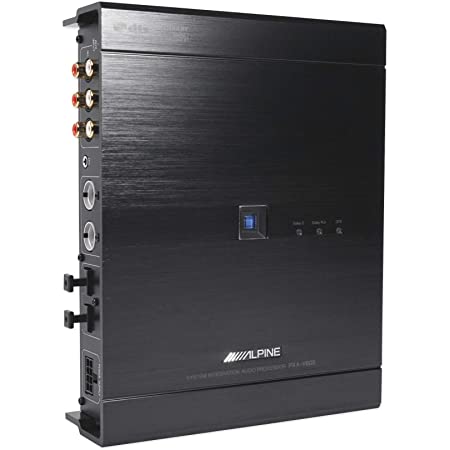

Alpine PXA-H800
|
SYSTEM INTEGRATION AUDIO PROCESSOR, 31-band Graphic EQ per channel (front L/R, rear L/R, centre, subwoofer: 10-band), Gain -12dB to + 12dB • Parametric EQ (front L/R 10-band, rear L/R 10-band, subwoofer 5-band, centre 10-band), Q 0,5/1/1,5/2/2,5/3/4/5, Gain -12dB to + 12dB • 8 channel auto/manual digital time correction (0 to 20ms, 0,05ms steps) • Basic functions Touch Control Ready with IVA-D511R/RB, IVA-D800R, INA-W910R, IVA-W520R • MediaXpander Plus • X-Over: Digital HPF/LPF (Slope 0/-6/-12/-18/-24/-30/-36, Gain -24dB to 0dB) • RoadEQ • ImprintEQ • 6 Channel RCA Input • 2 x Ai-NET Inputs • 2 x Optical Input • 6 Channel Speaker Level Input • 8 Channel configurable RCA output (4 Volts) • USB Port for computer setup via included Sound Manager software (requires Windows XP/Vista/7) • Included Microphone and USB Cable • Dolby Digital • Dolby PRO LOGIC II • DTS • Includes 5.5m Ai-NET cable • Gold-plated RCA Connectors • 2 x 32-Bit Floating-point SHARC DSP • 4 x Wolfson 24-Bit D/A Converters (K-Rank) • Euphony Sound Enhancement • RUX-C800 required for full operation |
