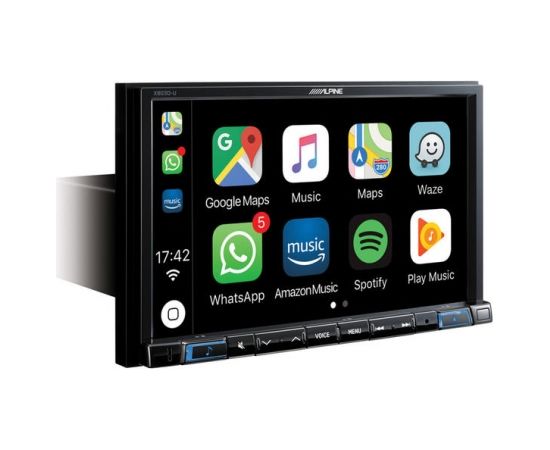

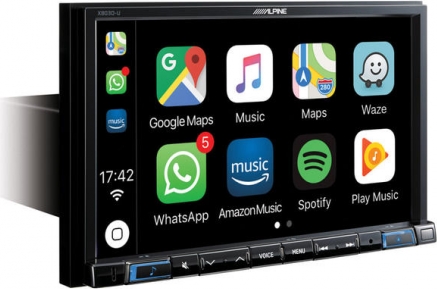

Alpine X803D-U
FEATURES
Tuner
- Memory Stations (FM: 24 / MW: 6 / LW: 6)
- Memory: Auto Memory
- Seek Mode: Local / DX Selection
RDS
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB Tuner
- DAB+ Tuner Built-in
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Service Preset: 18 Preset Memory
- Auto Ensemble/Service Memory
- Service Search Function
- PTY Search Function
- Alphabet Search Function
- Antenna Power Supply Selection
BLUETOOTH®
- Built-in BLUETOOTH® Module
- Wide Band Speech Technology
- HFP (Hands-Free Profile) Compatible
- Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
- Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Advanced BLUETOOTH® Technology
- Connection: SSP (Simple Secure Pairing) Supported
- Individual Profile Connection Hands Free Phone and Music Streaming
- Phone Book: Phone Book Synchronization
- Speed Dial: 4 Preset Memory (per phone)
- Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
- Device Name Display
- Auto Answer
- Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
- Redial Function
- Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
- DTMF (Touch-Tone) Function
- Signal Strength Indicator
- Battery Level Indicator
- Menu Language Selection: 24 Languages
- Firmware Updatable
- Microphone Included
Made for iPod® / iPhone®
- Compatibility for iPod/iPhone: compatible with all models except 1st and 2nd generation iPhone
- Connection: KCU-471i Required (Sold separately)
- Music Playback
- Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
- Alphabet Search
- Artwork Display
- Direct Up / Down: Playlist / Artist / Album / Genre / Composer
- M.I.X. (Shuffle) Play: Song, Albums, All
- Repeat
- Battery Charging
Connectivity
- Works with Apple CarPlay (requires CarPlay enabled iPhone)
- Works with Android Auto (Requires Android Auto enabled smartphone)
Navigation Function
- Map Coverage: 49 Countries (Western and Eastern Europe)
- Menu Language: 29 Languages
- Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
- Advanced Address Search
- Post Code Search
- Free Form Search
- Partial Name Search
- Advanced POI Functions
- Smart Routes: Smart Routes using historic traffic patterns
- Advanced Route Planning
- Eco Route Search
- 7 Alternative Route Recommendation
- Advanced TMC Mode
- Map Display Mode: 2D Heading Up, 2D North Up, 3D
- 3D City Mode: 3D Building/Icon Display
- Elevation Map Display: 3D maps with elevation mode
- 3D Motorway Junction View: Junction View with Sign Post
- Drive Lane Suggestion
- Tunnel Mode
- Highway Mode
- Voice Guidance Mixing
- Text-to-Speech
- Direct Phone Call from POI data
- 3 Positioning Sensors: GPS, Gyroscope, Vehicle Speed Pulse
USB Media Connection
- USB Connection: USB Extension Cable Included
- Music Playback: FLAC/MP3/WMA/AAC compatible
- Video Playback: MP4 compatible
- File / Folder Name Search
- Tag Info Search
- Folder Up / Down
- M.I.X. Random Play
- Repeat
Sound Tuning
- Bass Engine SQ
- Bass Engine™ Pro
- Subwoofer Level Adjustment
- Subwoofer Phase Select
- 2 V High Voltage PreOut
- Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
- Dual HD EQ (9-band Parametric Equalizer front/rear)
- 6 Channel Digital Time Correction
- Digital Crossover Setting
- Customized Sound Setting by Car Type
- MediaXpander HD
- Application Volume Level Setting
- Sound Setting Data Download
- Easy, Step-by-Step Sound Customization
- Alpine TuneIt App ready
General
- Power Output: 4 x 50 W High Power Amplifier
- Advanced Power IC
- Display: 8-inch Capacitive WVGA High Resolution Display
- White LED Backlighting System
- 50/50 Split Screen: Left / Right Position Changeable
- Control Type: Touch
- My Favorites Function
- Automatic Setting Change for 2 Users
- High Grade Audiophile Design
- 3 PreOuts (2 V, Front / Rear / Subwoofer)
- AUX-In: 1 A/V AUX Input (3.5mm micro jack)
- Steering Wheel Remote Control Function
- Vehicle Display Interface Ready (UART connection)
- Remote Control Ready
- Navigation Guidance Mix
- Camera Connection & Built-in Controls for Multi-View Cameras
- Camera Guide Line Adjustment
- Rearview Camera Display Automatic Boot-up
- Simple Mode & Info Mode Display Selection
- Visual EQ
- Live Contrast Adjustment
- Menu Language: 24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu and Voice Guidance)
- Clock
- Auto Dimmer
- Anti-theft security code
- Firmware Updatable
- Power Antenna Lead
- Remote Turn-On
- HDMI Input (Alpine Special HDMI connector required)
- Engine Start-Stop unaffected
- Ready for optional DVD Player DVE-5300
Map & Database
- Online Map Update via alpine.naviextras.com
- Featuring TomTom Maps
- 3 Years free of charge map update (multiple updates possible)
Installation
- Perfect F.I.T. Kit Solutions available
SPECIFICATIONS
Screen
- Screen Size: 8-inch Capacitive WVGA
- LCD Type: Transparent Type TN LCD
- Operation System: TFT Active Matrix
- Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
- Illumination System: White LED Backlighting
- Effective Number of Picture Elements: 99.99%
- Colour System: NTSC, PAL
Max Power Output Ratings
- Max Power Output: 4 x 50 W
FM Tuner
- Tuning Range: 87.5 - 108.0 MHz
- Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
- 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB
- Stereo Separation: 35 dB
- Capture Ratio: 2 dB
MW Tuner
- Tuning Range: 531 - 1,602 kHz
- Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf
LW Tuner
- Tuning Range: 153 - 281 kHz
- Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf
USB
- USB Requirements: USB 2.0
- Max. Power Consumption: 1,500 mA (CDP Support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT 16/32
- MP3 Decoding: MPEG-1/2 AUDIO Layer-3
- WMA Decoding: Windows Media™ Audio
- AAC Decoding: ACC-LC format ′′.m4a′′ file
- FLAC Decoding
- Number of Channels: 2-Channel (Stereo)
- Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
- Total Harmonic Distortion (at 1kHz): 0.008%
- DynamicRange(at 1kHz): 95 dB
- Signal-to-Noise Ratio: 100 dB
- Channel Separation (at 1kHz): 85 dB
GPS / Glonass
- GPS / Glonass compatible navigation antenna included
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V2.1+EDR
- Output Power: +4 dBm Max. (Power class 2)
- HFP: HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP: A2DP (Advanced Audio Distribution Profile)
- AVRCP: AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
Sound Tuning
- Subwoofer Level Adjustment: 0 to +15
- Subwoofer Phase Setting: 0° or 180°
- BASS ENGINE SQ: 5Mode, Level 0 to +6
- HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- HighPassFilter (Gain): -12 to 0 dB
- LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- LowPassFilter (Gain): -12 to 0 dB
- Time Correction: 0.0 - 9.9ms (0.1ms step)
- Dual HD EQ Front + Rear
- Parametric Equalizer (Band 1): 20 - 100 Hz
- Parametric Equalizer (Band 2): 63 - 315 Hz
- Parametric Equalizer (Band 3): 125 - 500 Hz
- Parametric Equalizer (Band 4): 250 - 1k Hz
- Parametric Equalizer (Band 5): 500 - 2k Hz
- Parametric Equalizer (Band 6): 1k - 4k Hz
- Parametric Equalizer (Band 7): 2k - 7.2k Hz
- Parametric Equalizer (Band 8): 5.8k - 12k Hz
- Parametric Equalizer (Band 9): 9k - 20k Hz
- Parametric Equalizer (Gain): -14 to +14
- Application Volume Level Setting: -14 to +14
HDMI Section
- Input Format 720p/480p/VGA
- Output Format 480p
General
- Power Requirement: 14.4 V. DC (11-16V allowable)
- Pre Output Voltage (Before Clipping): 2 V / 10k ohms
- Maximum Mounting Angle: 30°
Dimensions
- Din Size: 1DIN chassis and 8” Capacitive Touch Screen
- Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
- Monitor-Chassis Size (W x H x D) mm: 198 x 125 x 147 mm
- Nose Piece Size (W x H x D) mm: 191 x 121 x 19 mm
