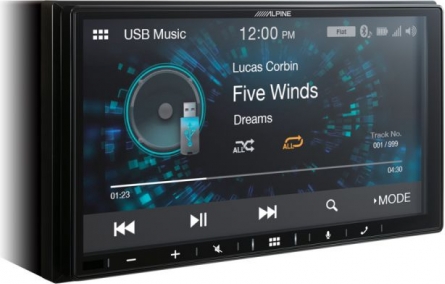

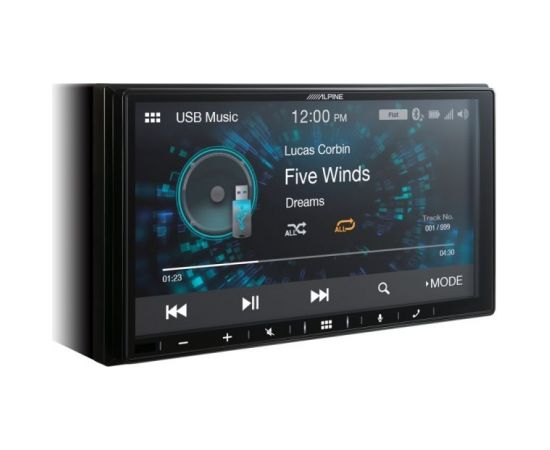

Alpine ILX-W650BT 7" Digital Media Station (universal 2-DIN)
FEATURES
GENERAL
- 7-inch capacitive touch screen with swipe graphical user interface
- AM / FM tuner (non RDS)
- Works with Apple CarPlay
- Works with Android Auto
- 9-Channel Parametric EQ
- Digital Crossover
- 6-Chanel Digital Time Correction
- Built-in Bluetooth for audio streaming and hands-free operation
- MediaXpander
- USB port
- Included microphone
- Steering Wheel Remote Control Ready
- 2 camera inputs (front and rear)
- 3 PreOuts (4 Volts)
- KTA-450 Power Pack Ready
- FLAC / MP3 / WMA Playback (from USB)
- USB video playback
SPECIFICATIONS
MONITOR SECTION
- Screen Size : 7 inch
- LCD Type : Transparent type TN LCD
- Operation System : TFT active matrix
- Number of Picture Elements: 1,152,000 pcs. (800 × 480 × 3 (RGB))
- Effective Number of Picture Elements : 99% or more
- Illumination System: LED
TUNER SECTION
- FM Tuning Range : 87.5 – 108.0 MHz
- AM Tuning Range: 531 – 1,602 kHz
- Signal-to-Noise Ratio : 65 dB
USB SECTION
- USB requirements : USB 2.0
- Max. Power Consumption: 1,000 mA (CDP Support)
- USB Class: USB (Play From Device) / USB (Mass Storage Class)
- File System : FAT16/32
- Dynamic Range : 95 dB (at 1 kHz)
- Signal-to-Noise Ratio : 100 dB
BLUETOOTH SECTION
- Bluetooth Specification: Bluetooth V4.2
- HFP (Hands-Free Profile)
- PBAP (Phone Book Access Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
GENERAL
- Power Requirement: 14.4 V DC (11–16 V allowable)
- Operating temperature : -20 degree Celcius to + 60 degree Celcius
- Power Output : 4 x 16 Watts RMS
- Weight : 0.92 kg
CHASSIS SIZE
- Width: 178 mm
- Height: 100 mm
- Depth: 60 mm
Ražotājs:
ALPINE
