Hismart Electric Car Charging Station, Type 2, 22kW, 32A, 3-phase, 5m

KODS: EV200085

Preces ID:1388303

652²⁰ ^€

Piegādātāja noliktavā: 5 prece(s)

+ −

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsHISMART

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa
Video

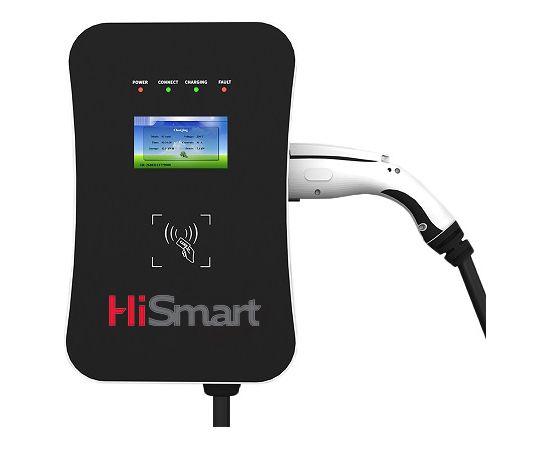

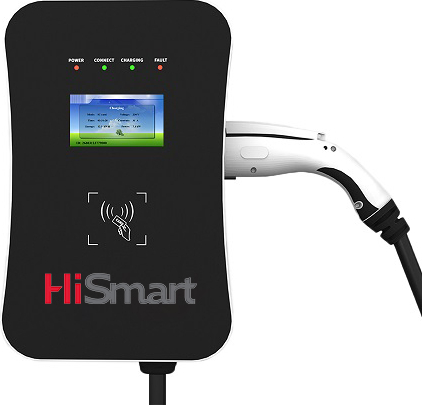

Charging station for electric cars Mode3, 22kW, 32A, 3-phase, with Type 2 connector, wallbox, RCD, IP65 (for indoor and outdoor conditions), with 5m lenght charging cable.

Features:
The charging station allows charging up to 22kW.
5 meter long charging cable for electric cars.
Type 2 connector, European standard. Compatible with any vehicle using an appropriate cable or adapter (Type 1 Yazaki, Type 2 Mennekes, Tesla, Chademo, CCS combo etc.).

Specifications:
Max. charging current: 32A (3-phase).
Max. charging power: 22kW (3-phase).
Input: 380V +/- 20V AC (3-phase), 32A (max.), 50 / 60Hz.
Output: IEC 62196, Type 2 (European), Mennekes, 7 contacts.
Charging control: Plug & Play / RFID card.
Screen: 4.3-inch LCD screen.
4 LED indicators: voltage / connection / charging / error.
Housing material: metal plate.
Front panel: tempered glass.
Cable length: 5m.
Screen color: black.
Operating temperature: -30°C-55°C.
Operating humidity: <95% RH.
Storage temperature -40°C to + 75°C.
Safety class: IP65 (adapted to indoor and outdoor conditions).
Protection: RCD (Residual Current Device).
Protection against: overheating, over-voltage, overload, under-voltage, short circuit,
surge, earth-leakage; ground protection.
Cooling: natural.
Result: 410 x 260 x 164.
Weight: <12 kg.

Warranty: 24 months.
