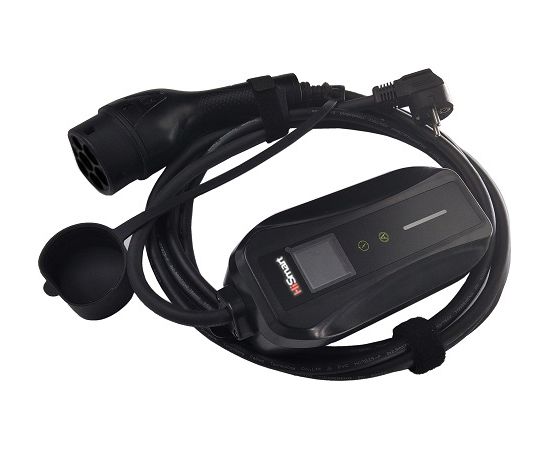

Hismart Electric Car Charger GB/T - Schuko (220V), 6-16A, 3.5kW, 1-phase, 5m
| Portable charger for electric cars, with GB/T plug, 6-16A, 3.5kW, single-phase, with LED screen and 2 touch buttons, with 5m cable. Features: The portable charger allows you to charge electric cars from the AC network with a power of up to 3.5 kW. GB/T electric car connector (Chinese standard) and Schuko plug. 5 meter long charging cable. LED display screen and two touch buttons: Current button and Time button. The touch button allows you to select the charging current (6-16A). Time button for setting charging start time (30min to 5 hours). Due to its low weight, it is easy to transport. Technical data: Max. charging current: 6-16A (1-phase). Max. charging power: 3.5kW. Operating voltage: 220V AC, 50/60Hz. Cable length: 5 m. Input: Schuko, 16A, 200-250V, 2 contacts. Output: EV plug GB/T 20234 (Chinese standard), 7 contacts. Cable dimensions: 3x2.5mm²+1x0.75mm² (EN50620). Size: 220 x 60 x 100 mm. Safety class: IP66 for charger, IP54 for plug. Protection against: overheating, over-voltage, overload, under-voltage, short circuit, surge, earth-leakage; Ground protection. Operating temperature: -25°C ~+50°C. Operating humidity: <95% RH (non-condensing). Certificates: CE. Color: black. Warranty: 24 months. |
Ražotājs:
HISMART
