EV Charging Stasion Socket Duosida, Type 2 (Female), 32A, 3-fazė

KODS: EV200238

Preces ID:1388515

71⁰⁰ ^€

Piegādātāja noliktavā: 3 prece(s)

+ −

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsDUOSIDA

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa
Video

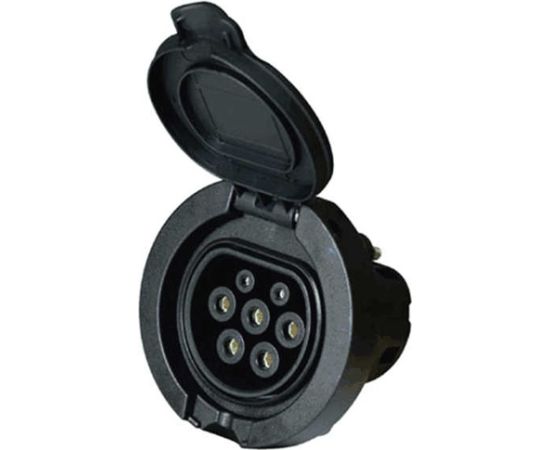

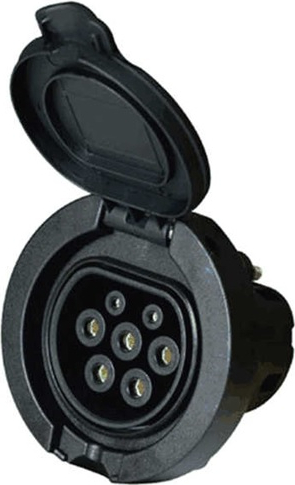

Electric vehicle charging station socket (charger side), Type 2 (Female), 32A, 3-phase, without cable.

Features:
Type 2 electric vehicle charging socket (62196-2).
The socket has a protective cover, is compact and easy to install with 4 fixed points, screw method.
Antiflaming, pressure-resistant, abrasion resistant and impact resistant.
Charging capacity up to 22 kW.
Operating temperature -30° to +50°C. Current 32A/415V.
Contacts: copper alloy, silver plating.

Specifications:
Connector type: IEC 62196, Type2 (European), Mennekes, 7 contacts.
Rated current: 32A.
Operating voltage: 415V AC.
Cable specification: 3x6mm²+2x0.75mm² (single phase); 5x6mm²+ 2x0.75mm² (three phase).
Operating temperature: -30°C to +50°C.
Material: thermoplastic, flame retardant grade UL94 V-0.
Certificates: CE, TUV.
Colour: black.

Warranty: 24 months.
